Qotom Fanless Industrial Barebone Computer 4 Gigabit Nic Core i7 i5 i3 AES-NI Firewall pfsense home Router Mini pc

FOB Reference Price:Get Latest Price
$183.00 - $288.00 / Case | 1 Case/Cases (Min. Order)
Memory Capacity:
Barebone system
Lead Time:
Quantity(Cases) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
QOTOM
Model Number:
Q300G4
Screen Size:
No Monitor
Type:
Barebone System
Display Type:
CRT
Graphics Card Type:
Integrated Card
Widescreen:
Yes
Processor Brand:
Intel
Processor Main Frequency:
1.7Ghz
CPU:
Intel Core i7/ i5/i3
Memory:
DDR3 DIMM Memory Slot
Hard Disk:
MSATA and 2.5" HDD
Color:
Black
Operating System:
Win7/8/10,Linux,pfsense,Ubuntu
Packageing List:
Power adapter ,VESA mount bracket, 2 antennas
Intel Graphics:
HD Graphics 6000/4400
Dimension:
187*111*50mm
Weight:
2kg
AES-NI:
YES
Products Status:
Stock
Supply Ability
Supply Ability:
3000 Case/Cases per Month
Packaging & Delivery
Packaging Details
the standarded export carton
Port
shenzhen
Lead Time :
Quantity(Cases) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description
Item Name
Q3xxG4
Dimension
187*111*50mm(L*H*W)
Power Consumption
15w
Optional CPU
Q375G4: Intel Core i7-5500U Processor ,dual core
4M Cache, 2.4GHz,up to 3GHz

Q355G4
: Intel Core i5-5250U Processor ,dual core
3M Cache, 1.6 GHz,up to 2.70 GHz(Out of stock now)

Q330G4: Intel Core i3-4005U Processor,dual core
3M Cache, 1.7 GHz,up to 2.70 GHz

Q335G4: Intel Core i3-5005U Processor ,dual core
2M Cache, 2GHz

Q350G4Y: Intel Core i5-4200Y Processor ,dual core
3M Cache, 1.4 GHz,up to 1.9 GHz

Q350G4: Intel Core i5-4200U Processor ,dual core
3M Cache, 1.4 GHz,up to 2.6 GHz


Memory
Support DDR3L 1333/1600 MHz,1.35V                                                    1 x DDR3 DIMM Memory Slot ,Max. 8GB
Hard Disk
support SSD ( MSATA / SATA) - support 2.5"HDD
Onboard VGA
Q355G4 :   intel HD Graphics 6000
Q330G4 : Intel HD Graphics 4400
Q335G4:  Intel HD Graphics 5500
Q350G4Y: Intel HD Graphics 5500
Q350G4: Intel HD Graphics 4400
Onboard LAN
4*  Intel I211-AT- 10/100/1000 Controller
WiFi
optional
Audio Solution
Realtek ALC662 6-Channel HD Audio

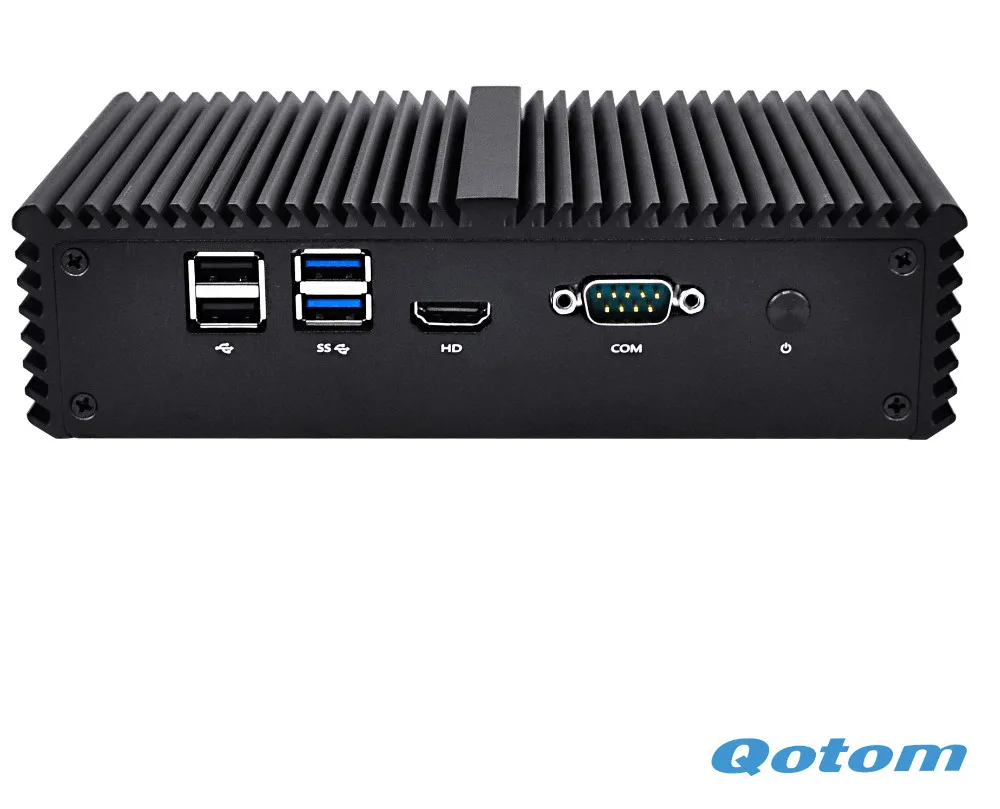

Front-Panel Connectors
 power on/off button
 HDD LED, Power LEDs
 2 *USB 2.0 Ports
 2 * USB 3.0 ports
 COM port
 HD Video port
Rear-Panel Connectors
 12V DC input
 4 * Intel RJ-45 Ports
 1 x Speak Out Connector

Operating System
Preload Pfsense,wanna Linux/Ubuntu or inactive win7/8/10,          pls tell me in advance.
Boot Type
1. work automatically when the power connected
2. Press the button then it works


Available Configurations with uograding quotation:


Memory: 2GB/4GB/8GB RAM
Hard disk: 8GB/ 16G/24G/30G/32GB/60G/64GB/120G/128GB/240G/256G/512GB Msata SSD
2.5" HDD: 500G or 1T

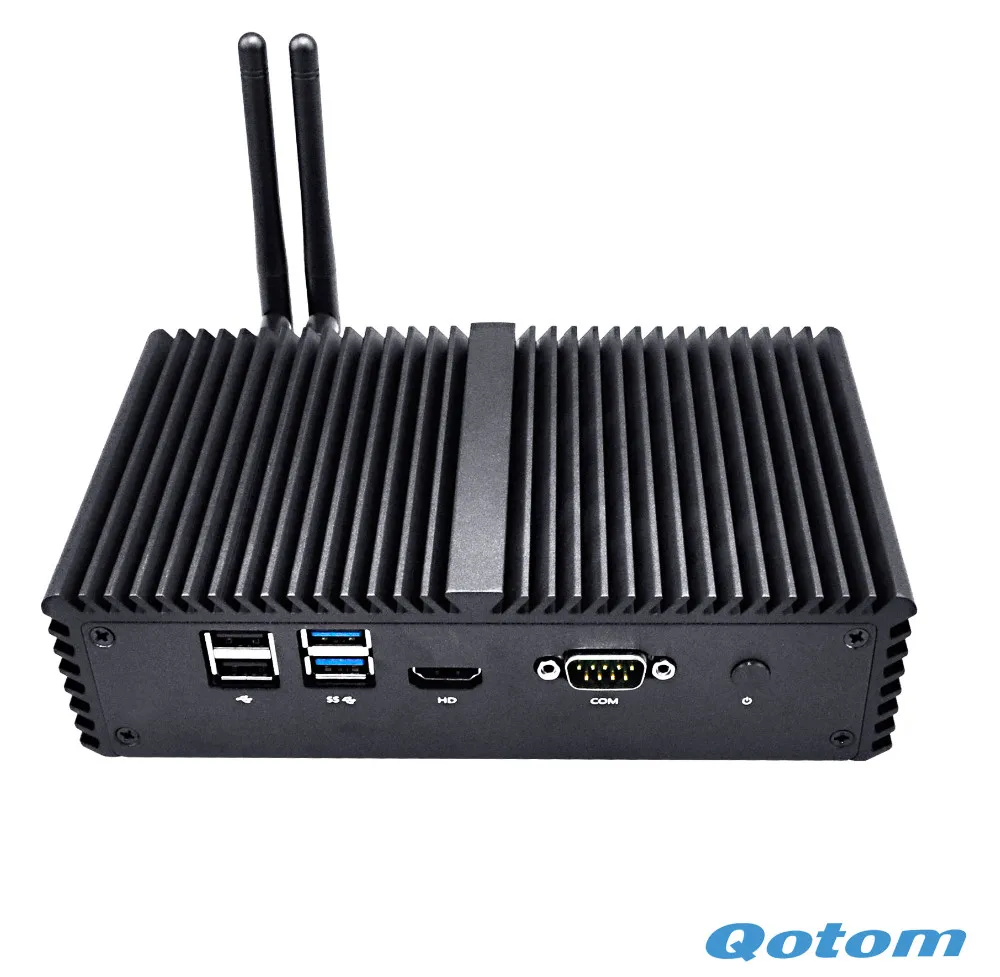

WIFI & bluetooth : 300M wireless



Detailed Images
Packing & Delivery
Product Application

You can use the mini computer as the net server

connect to lots of official computers at the same

time.

 Fanless Mini PCs series are designed for unique, office, home and training applications. Their compact size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.
You Can also bulit it into the individual pc .it is very convinient to handle it and install it .

Related Products
Visit Our Factory
Attention

All the mini pc and accessories have been tested before delivery.

The preload unactivated  pfsense, If you  like other system Ubuntu etc ,please contact me in time.

We are not responsible for your import fees (duty and tax, VAT and others)
We are not responsible for the delays due to the Customs clearance in your country.

One year warranty


FAQ

Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
