Intel Celeron Processor j3160 quad-core 1.6 GHz,Up to 2.24 GHz
SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot ,Max. 8GB
SSD MSATA - support HDD (2.5 inch SATA HDD )
intel HD Graphics
Realtek RTL8111E 10/100/1000
WiFi / Bluetooth
Realtek ALC662 6-Channel HD Audio
• power on/off button • Power LED • 2 x USB 2.0 Ports • 2 x USB 3.0 Ports
• 1 x Minipcie port (for mSATA SSD) • 1 x Minipcie port (for WIFI/BLUETOOTH/3G/4G Module) • 1 x DDR3 DIMM Memory Slot • 1 x GPIO header • 1 x SIM card Slot • 1 x SATA Port • 1 x SATA power header • 1 x Front panel header • 1 x Front panel audio header • 1 x Front panel USB header • 1 x Automatically boot jumper
12V DC input 1 *HD Video port 1 *VGA port 2 x RJ-45 ports
Memory: 2GB/4GB/8GB RAM Hard disk: 8GB/ 16GB/32GB/64GB/128GB/512GB Msata SSD HDD: 2.5 inch 500GB or 1TB HDD WIFI & bluetooth : 300M wireless

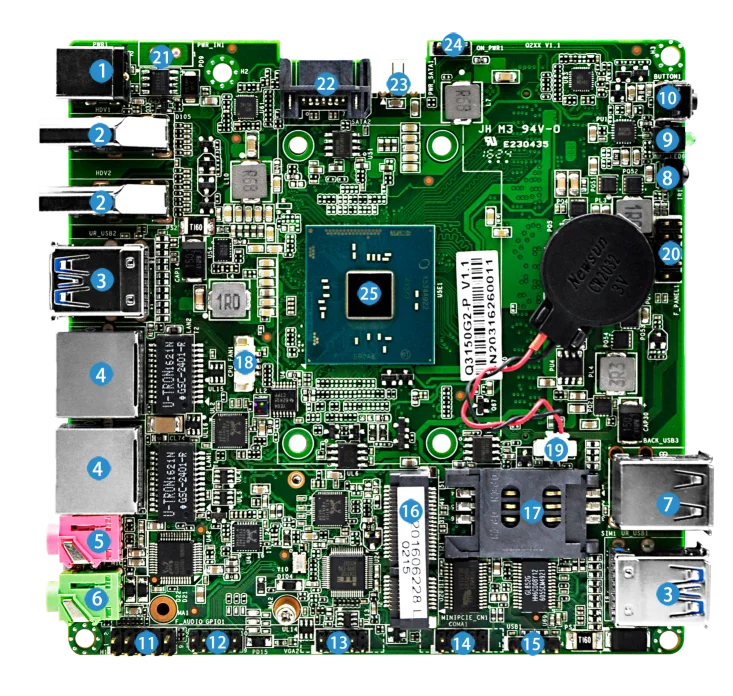

12V DC in connector
HD Video connector
4 * USB 3.0 ports
MIC: Connect to outside microphone
(Line out): Connect to outside audio device
2 * USB 2.0 ports
Front panel audio header
VGA extension header
Serial port expansion header (COM1)
Front panel USB 2.0 header
Mini PCI Express connector for WIFI,Bluetooth,3G module
SIM card socket
CPU fan header
Front panel header
DC in header (optional)
SATA power connector
Automatically boot jumper
Processor (Support Braswell )
Mini PCI Express connector for MSATA SSD
DDR3L SO-DIMM socket
Packing & Delivery
"5S" desktop: Special: Can install 2.5'' HDD and Msata SSD at the same time. Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day small: tiny size and smart design ,easily put. Smooth: blue-ray and Ultra HD streams, full HD resolution Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
functional mini pc
Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect; Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games. Entertainment: support blu ray 1080P video play and others

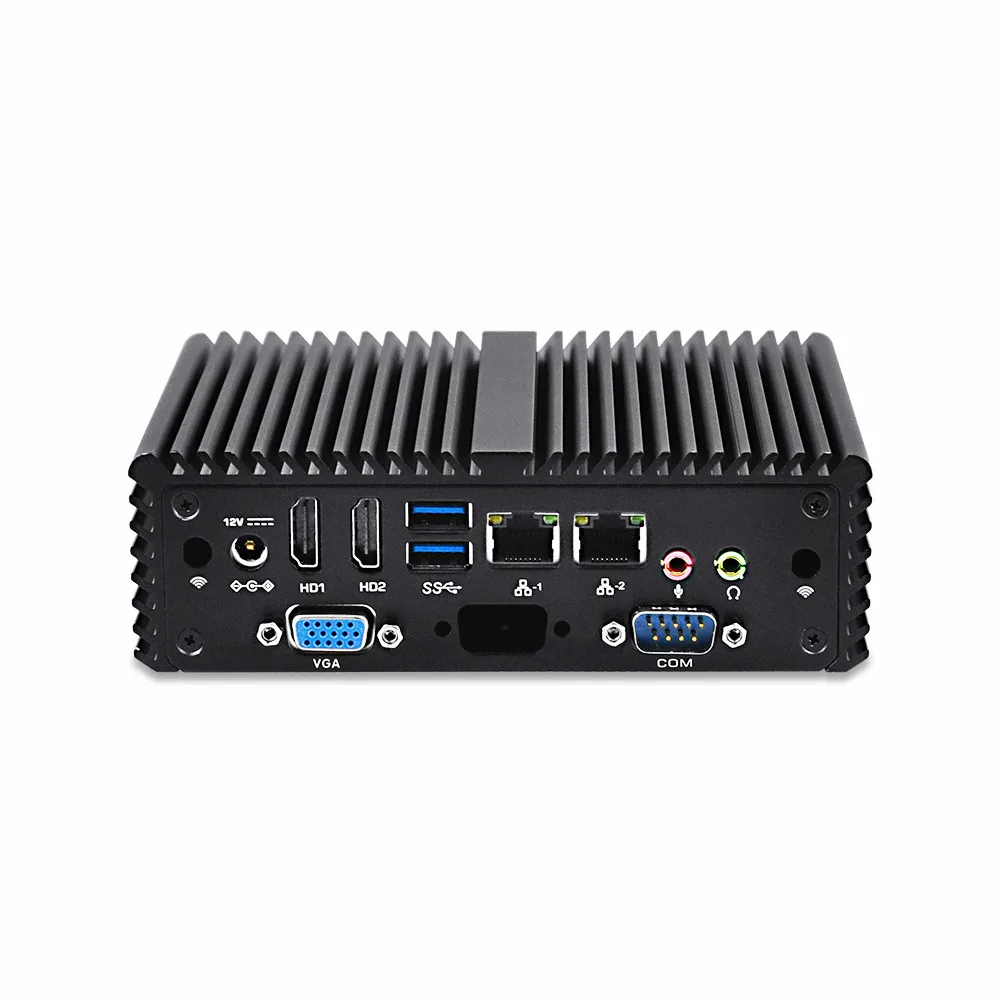

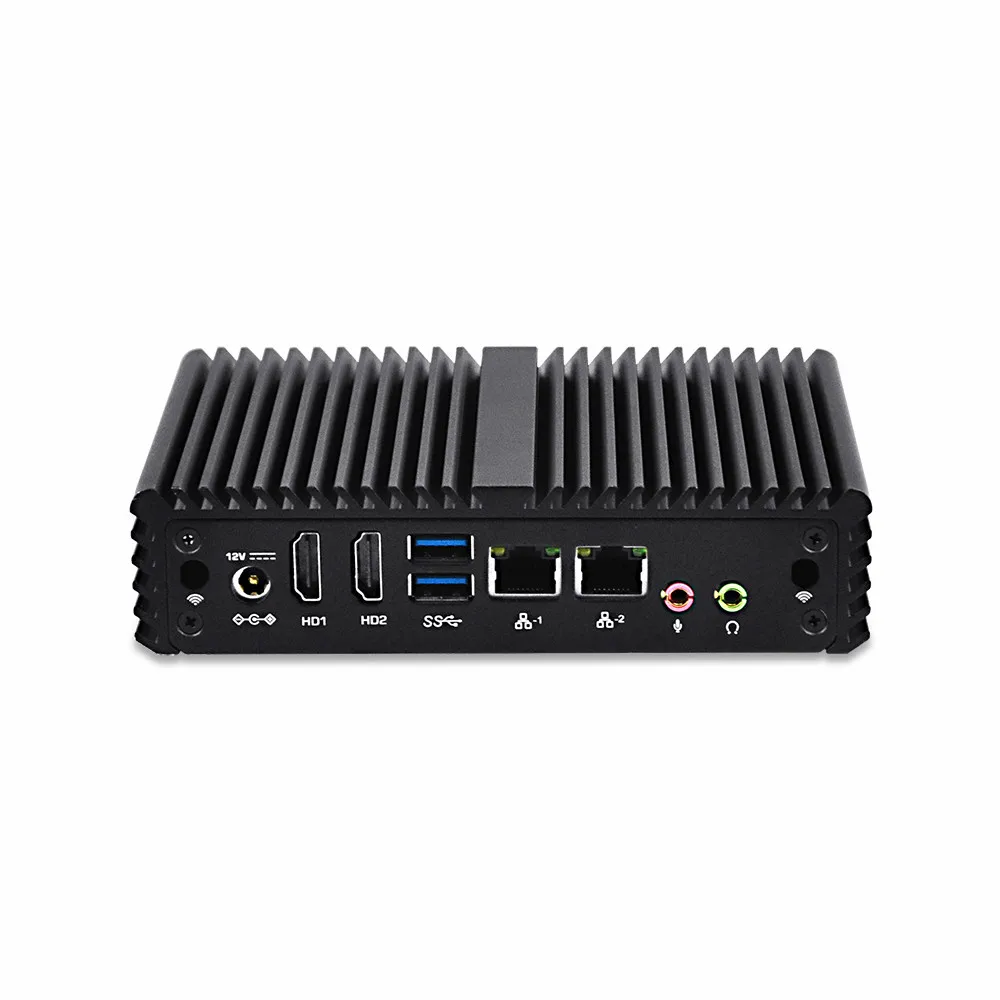

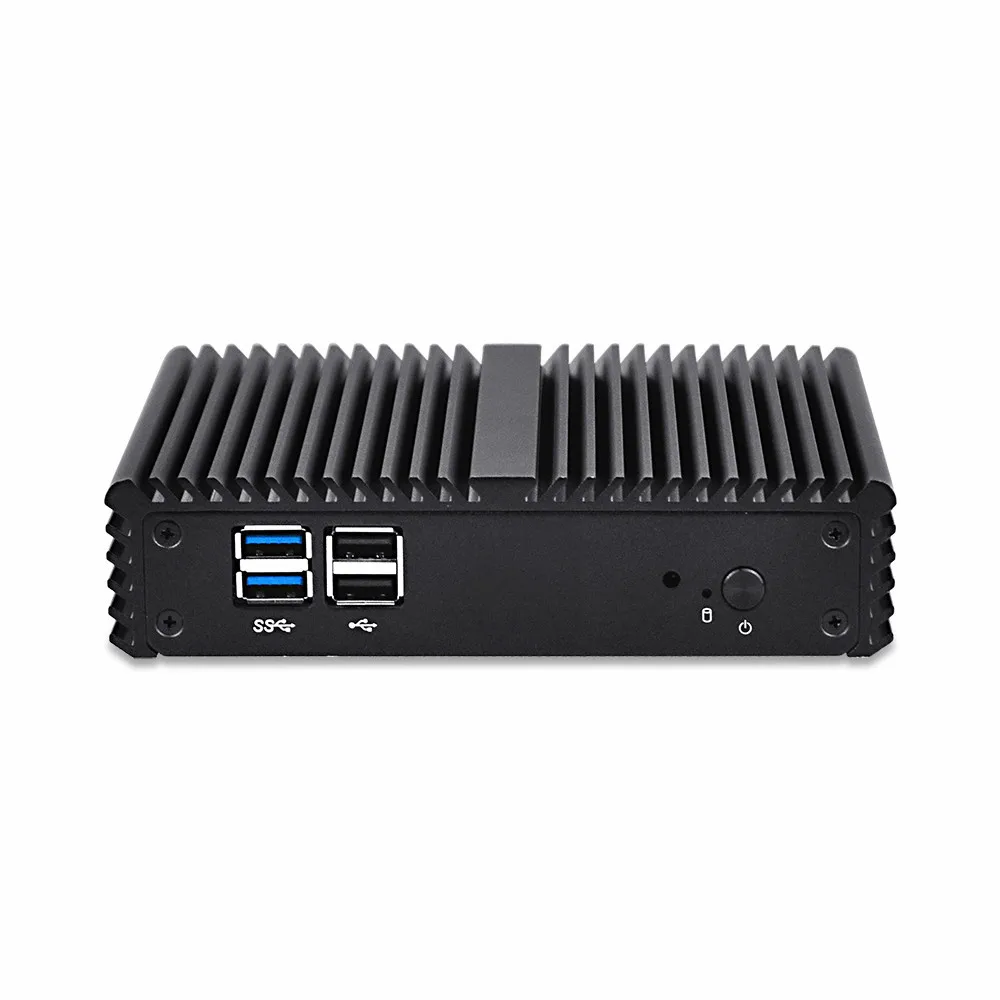

Front panel Ports:
Q150P : 2HD Video,2USB3.0,2LAN,VGA port ,COM,
Q150S： 2HD Video,2USB3.0,2LAN
Q150p: 156*128*48mm(be able to support HDD and SSD at the same time)
All the mini pc and accessories have been tested before delivery.
The preloadded unactivated Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable.
We are not responsible for your import fees (duty and tax, VAT and others), but we can our best to help you avoid and solve We are not responsible for the delays due to the Customs clearance in your country.
Q: What's your MOQ? A: MOQ: 1 piece. We can give you a discount for your bulk order.
Q: Can you provide OEM service? A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!
Q: Can I print my logo on the mini computer? A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.
Q: What's the lead time? A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.
Q: Can I arrange the shipment by myself ? I have forwarder in China. A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
