Qotom-Q190G4N Quad Core 4 Gigabit LAN to Build a Router Mini PC

FOB Reference Price:Get Latest Price
$108.00 - $136.00 / Piece | 1 Piece/Pieces (Min. Order)
Memory Capacity:
4g 8GB 2gb
Hard Drive Capacity:
≤ 40GB ≥ 1.5TB Other
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Qotom
Model Number:
Q190G4N
Screen Size:
No Monitor
Type:
Mini PC
Display Type:
N/A
Graphics Card Type:
Integrated Card
Optical Drive Type:
N/A
Widescreen:
No
Processor Brand:
Intel
Processor Main Frequency:
2.0GHz
Model:
Q190G4N-S07 / Q190G4N-S08
Onboard CPU:
Celeron Processor J1900
Dimension:
156 x 128 x 37mm / 155 x 127 x 48mm
Power Consumption:
10W
Memory:
Support DDR3L RAM
Storage:
Support mSATA SSD
Hard Disk:
Support 2.5" SATA HDD/SSD (Only for S08)
Wireless:
Support 150M WiFi (Only for USB Device)
Warranty:
1 Year
Material:
Aluminum Alloy
Products Status:
Stock
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece in each box; Brown paper box
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated
Product Description
Processor
System
Expansion
CPU
Celeron BayTrail J1900 Quad Core SOC Processor 2.0GHz
Up To 2.42GHz 2M Cache
Mini-PCIe
1 x Mini-PCIe for Option (Only Support USB Device)
1 x Full-length for 3G, Half-length for Wi-Fi Module by Default
CPU TDP
10W
mSATA
1 x Full Length Mini-PCIe for SSD
Chipset
By CPU
DC-in
Header (Optional)
Graphics
Intel® HD Graphics
Kensington
Lock
Support
Memory
1 x DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz)
Power Adapter
12V3A
Storage
1 x Mini-PCIe for mSATA SSD
1 x 2.5-inch HDD/SSD
Q190G4N-S07: Only Support mSATA SSD;
Q190G4N-S08: Support mSATA SSD and 2.5-inch SATA HDD/SSD
DC Jack
5.5mm, 2.5mm
WiFi
150M WiFi
(Only Support USB Device)
SIM Card Slot
1
LAN Chipset
4 x Intel I211-AT Gigabit LAN
Automatically
Boot Jumper
1
Audio
No
Watch Dog
No
OS
Support Win 7, Win 8, Win 10, Linux, Pfsense, etc.
Dimension
Q190G4N-S07: 156 x 127 x 37mm
Q190G4N-S08: 155 x 127 x 48mm
Environmental
Mechanical
Operating
Temperature
0°C~50°C
Material
Aluminum
Non-Operating
Temperature
-20°C~80°C
Mounting
VESA Mounting Bracket
Humidity
10%~90%
Cooling Mode
Fanless Design
Detailed Images




Ports of Q190G4N-S07 is the same as Q190G4N-S08.



Q190G4N-S07 is thinner than Q190G4N-S08, so Q190G4N-S07 only supports 1 x mSATA SSD (Height is too thin to install 2.5" HDD / SDD, Q190G4N-S08 can support 1 x mSATA SSD and 1 x 2.5 inch SATA SSD/ HDD.

Feature
1) Main Port: 1 HD Video + 1 COM + 2 USB2.0 + 2 USB3.0 + 4 LAN;
2) CPU: Celeron BayTrail J1900 Quad Core SOC Processor 2.0GHz, Up To 2.42GHz 2M Cache
3) Integrated Graphics: Intel HD Graphics
4) Configuration: Support DDR3L RAM
                               Support MSATA SSD
                               Support 2.5" SATA HDD at the same time (Only for Q190G4N-S08)
                               Support WIFI (Only for USB Device)
5) With aluminum+metal fanless design. It can work stably without noisy.

Please Note:

1. Q190G4N has 2 versions: Q190G4N-S07 only supports 1 x mSATA SSD (Height is too thin to install 2.5" HDD / SDD, Q190G4N-S08 can support 1 x mSATA SSD and 1 x 2.5 inch SATA SSD/ HDD.
2. If you aren't IT expert or unfamiliar with pc installation, please buy RAM at least. If there is NO RAM, please use DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM. This PC DO NOT support DDR3 1.5V RAM.
3. This PC is also incompatible with some 1.35V RAM model likes Crucial etc. Seller is irresponsible and makes no compensation for buyer's own RAM.
4. WiFi is incompatible with pfSense (only support AP-mode), please reinstall other OS if necessary.

5. This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security.

WiFi & 3G / 4G Module

1. Full-length Mini PCI-e slot (Part ①) only supports mSATA SSD.
2. Half-length Mini PCI-e slot (Part ②) is only for WiFi (Only for USB Device).
3. Full-length Mini PCI-e slot (Part ③) is only for 3G/4G module.


Pls Note:
1. Mini PCI-e cann't be supported WiFi and 3G/4G module as the same time in this computer.
It only supports wWiFi by default. If you want to choose 3G/4G function, pls leave a message.
2. We don't provide SIM card and 3G/4G module.

BIOS Feature

Pls set in BIOS by yourself (press Delete key).

Packing & Delivery

Packing

Single Item Size: Q190G4N-S07: 156 x 127 x 37mm
                               Q190G4N-S08: 155 x 127 x 48mm
Package Including: 1 x Mini PC
1 x Screws
1 x VESA Mount Bracket
1 x Power Adapter with Cable
2 x Antennas (Only the configuration is included WiFi)

Shipping & Payment


Shipping

1. DHL / FedEx Express:
Delivery time is 3-7 working days, door to door.
3. UPS Express:
It will take about 10-15 working days and there is NO import taxes.
4. EMS:
Delivery time is 15-30 working days.

Payment
We accept T/T, western union and Paypal. If you prefer to place orders online, we can provide QOTOM Amazon store link.

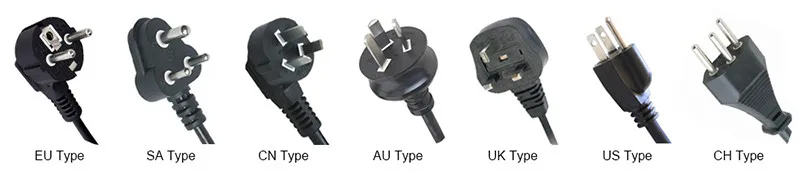

Power Plug Type to Choose

CE Certificate
FAQ
Q: What's your MOQ?
A: MOQ: 1 piece.

Q: What is lead time of the products?
A: Within 2 business days after payment completed. All the mini pcs and accessories have been passed the QC Test before delivery.

Q: Can you provide OEM/ODM service?
A: Sure, you can choose RAM, storage, wifi, interface port and OS freely as you want, the unit price will be different depends on the configuration, please contact us for more details!

Q: Can customer print their logo on the mini computer and customize logo on boot-screen?
A: Yes, we can print your logo on the mini computer by silk print or laser, MOQ is 1 piece. It is free for more than 10pcs Mini PC.

Q: What OS do your computers support?
A: Support Windows 7, Windows 8, Windows 10, Linux Ubuntu, pfsense etc.

Q: How long is your warranty period?
A: It is a full one-year warranty.

Q: What this Mini PC can do?
A: 1. Suitable for office editor: Word, Excel, PPT;
                               design work: Photoshop, CAD, CoreIDRAW, etc.
2. Use for online shopping and chatting.
3. Connect to your TV to watch moive and play games.
4. Support 3D games.

Q: Where the Mini PC can be used?
A: It can act as a host, applying to home, office, restaurant, bank, supermarket, library, hospital and almost of where need a computer.

More information please contact with us at anytime!
