XP WIN7 Dual Lan Mini ITX board,12*12CM , dual Core , Fanless X86,Desktop Pc Motherboard

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $93.00
  • >=50 Pieces
    $90.00
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Desktop
Chipset Manufacturer:
Intel
Socket Type:
Other
Form Factor:
Mini-ITX
Memory Type:
DDR3
Graphics Card Type:
Integrated
Hard Drive Interface:
SATA, Mini PCIE
FSB / HT:
1.5GHz
Brand Name:
intel
Model Number:
Q1007G2-P
Place of Origin:
Guangdong, China
CPU:
Intel Celeron Processor 1007U 2M Cache, 1.50 GHz
Model:
Q1007UG2-P
Warranty:
1 Year
Interface:
2*LAN Ports,4*USB Ports,1*HD Video+1*VGA,DC 12V
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
30 pcs/carton
Port
shenzhen
Lead Time :
Shipped in 3 days after payment
Product Description
Mechanical standard
NANO ITX Industrial Motherboard
120mm x 120mm
Chipset
Intel NM70
Processor
Intel® Celeron® Processor 1007U
2M Cache, 1.50 GHz
With up to 17 W TDP
BIOS
AMI BIOS
16MBit SPI BIOS
Memory
One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
Support DDR3 1333 MHz and DDR3 1600 MHz SO-DIMM
Support 8GB MAX
Graphics
Intel HD Graphics
Display: VGA / HDMI/LVDS Dual Display
* 1x HD Video (port), 1x VGA (pin), 1x LVDS (pin)
LAN
2 x Realtek RTL8111E 1000M
Audio
Realtek ALC662 HD Audio Decoding controller
6 Channel Audio output
Line out + MIC IN Port
COM
1x COM(RS232 port)
USB
4x On-board USB 2.0
1x Pin interface USB 2.0
Storage
1x SATA 3.0 (6Gb/s)
1x Mini PCIE port
Expansion Port
1x PCI Express Full-Mini Card connector ( for mSATA SSD )
1x PCI Express Half-Mini Card connector ( for WIFI and Bluetooth )
1x SATA power connector
1x SATA 3.0  connector (6Gb/s)
1x DDR3 SO-DIMM socket
1x Front panel header
1x 9 Pin VGA header
1x LVDS header (optional)
1x Front panel audio header
1x Front panel dual-port USB 2.0 header
Front Panel
1x Push button ( With LED) for Power ON/OFF
4x USB 2.0 ports
1x Serial port
1x HDD LED
1x Mic in port
Black Panel
1x DC in connector
1x HDMI port
1x VGA(D-Sub)port
2x RJ45 1000M port
1x Speaker out port
Power Supply
DC 12-19V
Working condition
Operation Temperature-10º-50ºC
Operation Humidity 10%-90% Relative Humidity,
Non-Condensing
Accessories
Cable for SATA HDD

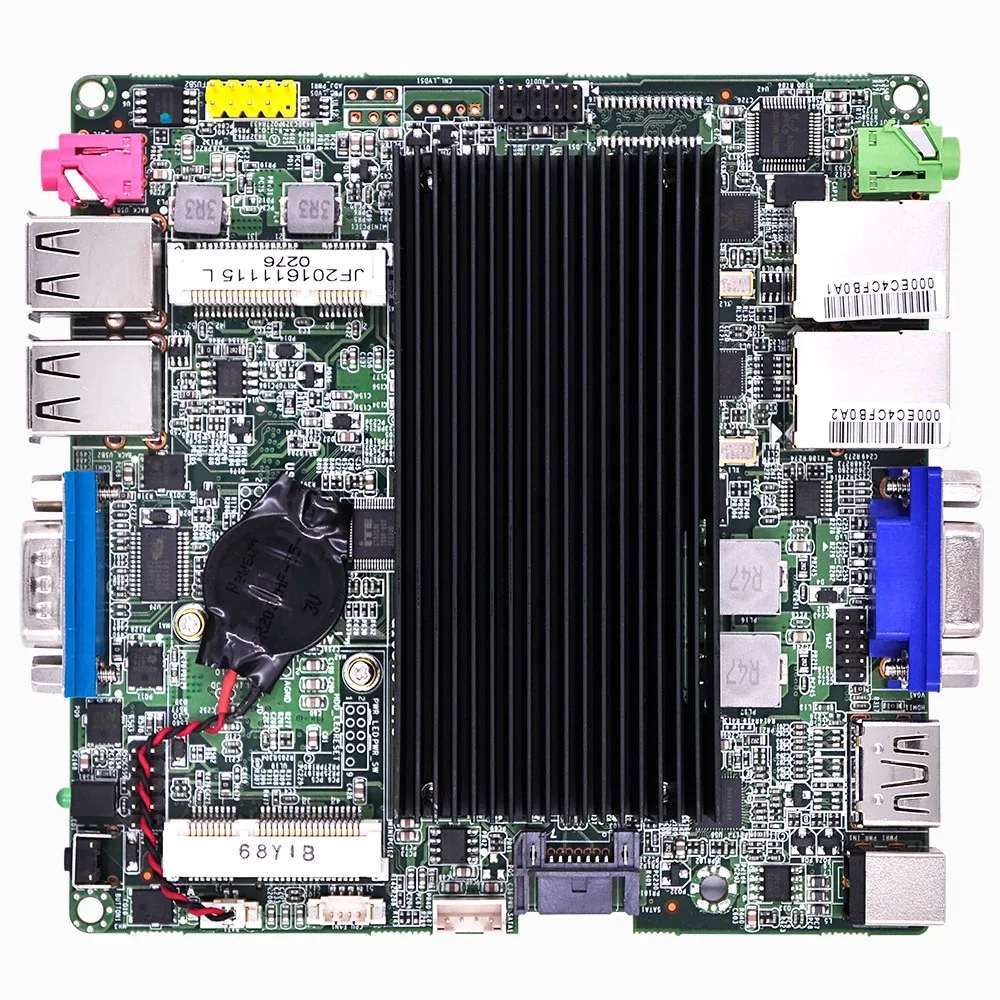

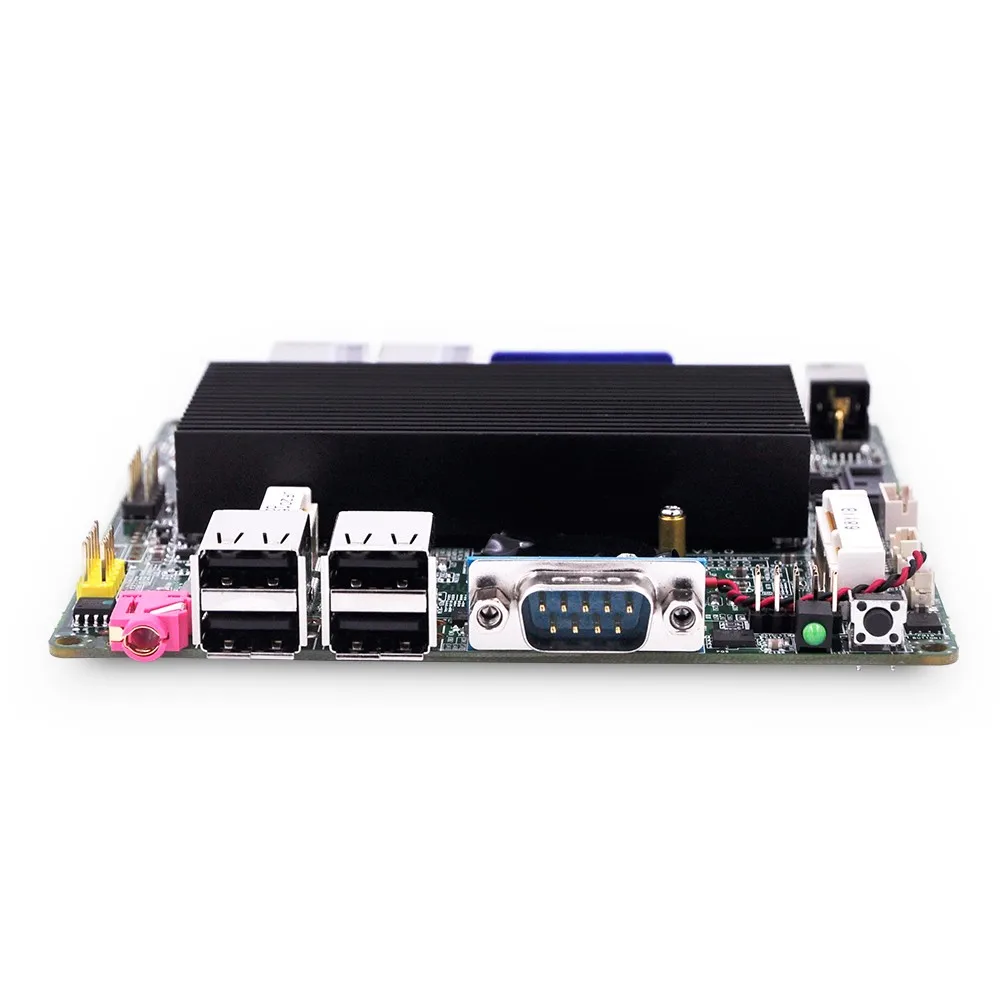

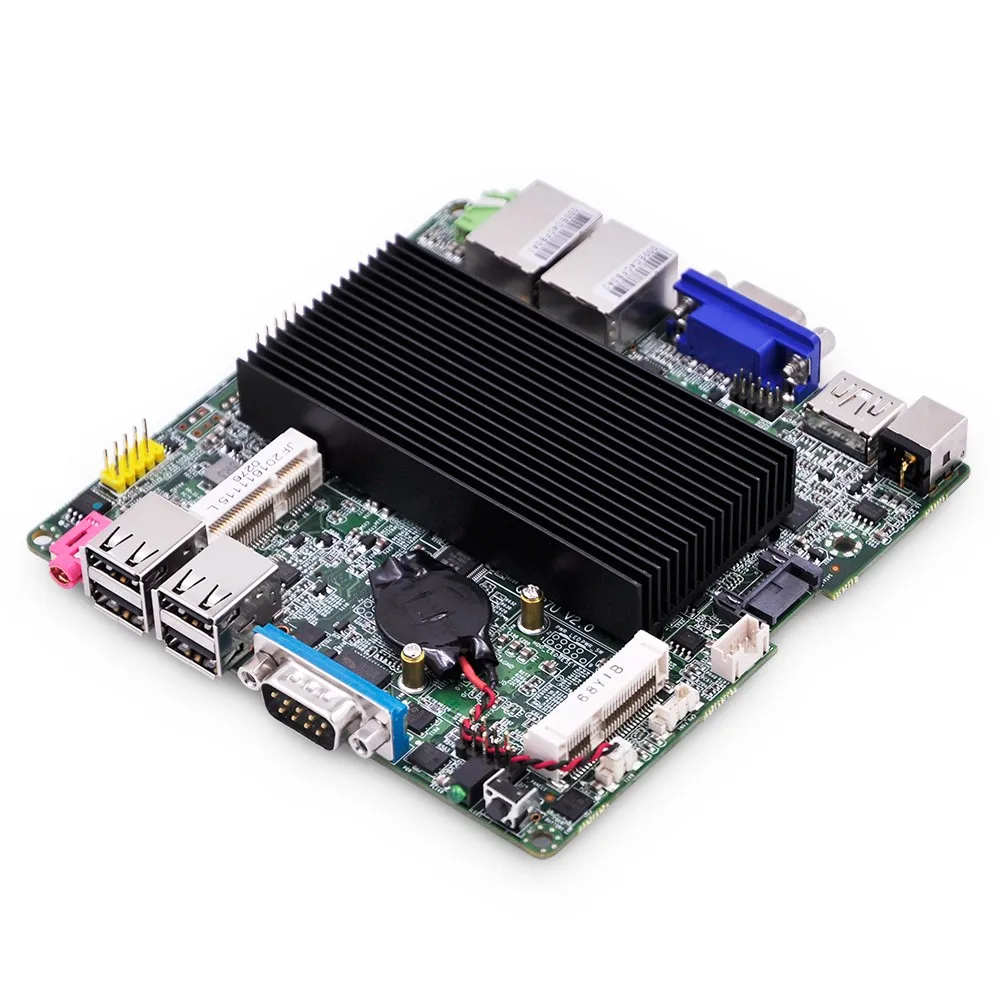

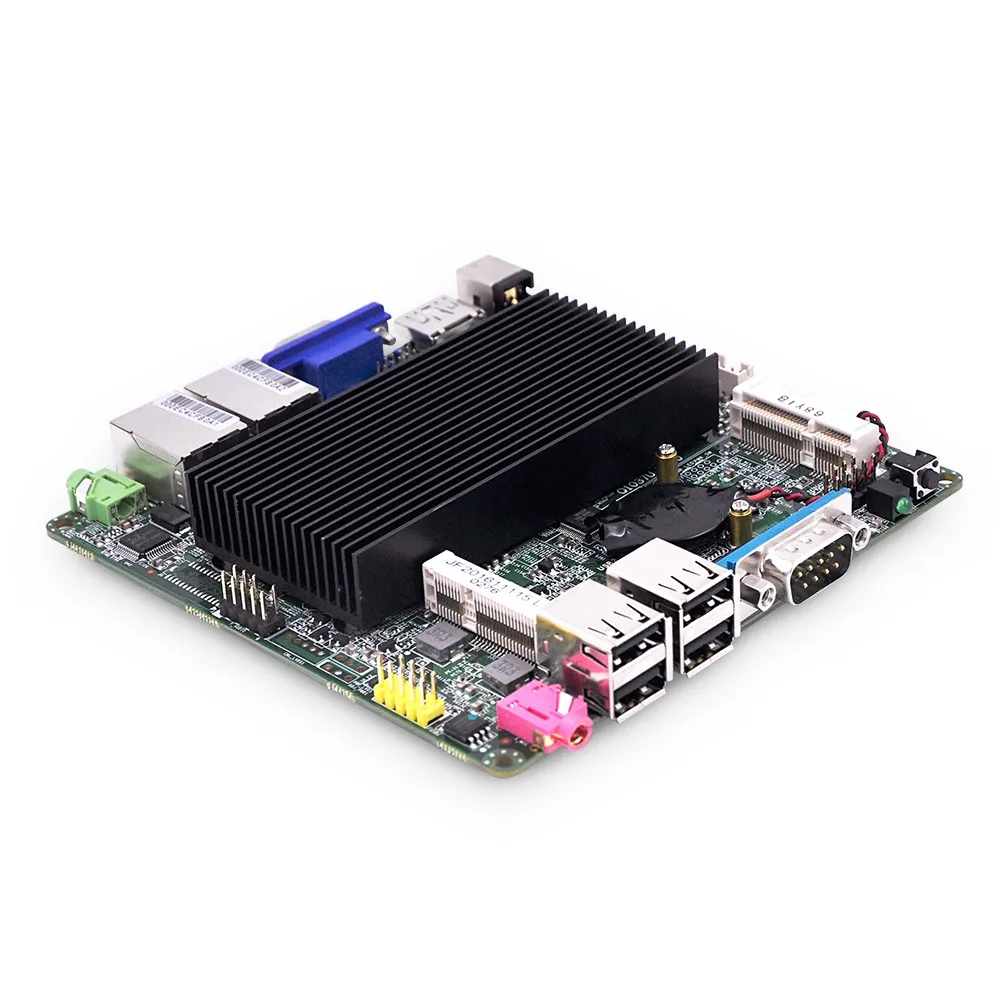

Detailed Images
About US

Qotom Technology CO., LTD is a professional manufacturer for Mini PC & Nano-Itx Motherboard.

Since 2004, we begin to produce and selling Mini PC & Nano-Itx Motherboard in China. After five years development, now we opened big market all over the world. You can find Qotom Mini PC & Nano-Itx Motherboard easily in Asia, Middle East, Latin America and Africa easily, also you can find some of us in other markets.

Our business aim is to let more and more people come to know and use thin clients. We supply our customer solutions for economical computing, computers that are heaper and smaller than traditonal desktops.

Packing


1*motherboard

1* SATA Cable

Delivery


1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!

2. The goods will be sent out within 3 working days after the full payment has been confirmed.

3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.


Payment


1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!

2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.

3. Make sure all the detailed buyer information have been correctly and completely filled in.

Warranty
1.For all the mini pcs you bought from us, we provide a full one-year warranty.

2.We assure you that all the mini pc and accessories have been tested before delivery.

3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ


Q1. What's your MOQ?

A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?

A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?

A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?

A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.

Q4. Can you provide OEM/ODM service?

A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !

Q5: Can I arrange the shipment by myself ? I have forwarder in China.

A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.

Q6: What mode of transport you can choose?

A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.

Q7: How does your factory do related quality control?

A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.

Q8: Will it be very hot since the mini computer CPU is fan-less?

A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.

Q9: Possible using 220v AC power?

A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?

A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
