Qotom 2 ethernet lan ports x86 j1900 ubuntu Linux industrial small fanless mini pc

FOB Reference Price:Get Latest Price
  • 1 - 9
    US $110.00
  • 10 - 49
    US $107.00
  • 50 - 99
    US $103.00
  • >=100
    US $99.00
Supply Ability:
200 Set/Sets per Day
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Memory Capacity:
Max 8Gb DDR3L 1.35V ram
Hard Drive Capacity:
Max 1Tb Sata Hdd+512Gb mSATA SSD
Graphics Card Type:
Integrated Card
Display Type:
None
Widescreen:
Yes
Optical Drive Type:
None
Processor Main Frequency:
2.0GHz
Brand Name:
QOTOM
Model Number:
Qotom-Q190S
Place of Origin:
Guangdong, China (Mainland)
CPU:
Celeron Quad Core J1900
Color:
Black
Size:
135*128*38mm / 135*128*45mm
Operating System:
Win 7/Win 8/10 Linux
Feature:
Fanless System
Port:
2*Gigabit Lan
Warranty:
1 Year
Packaging & Delivery
Packaging Details
1. Package size: 26*22*8cm .
2. G.W with package: 1.5kg~2KG
3. 10 sets/CTNs.
4. 1 CTN G.W: 14KG-15kg
5. 1 CTN Size: 54*40*25cm
Delivery Time
2-3 business days
Product Description
Specification
Dimension
S01: 135*128*38mm / S02: 135*128*45mm
Power Consumption
TDP 10W
Onboard CPU
Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to2.41 GHz)

Memory
Support DDR3L SO-DIMM Laptop 1.35V Ram 2GB / 4GB / 8GB Options
1 x DDR3L DIMM Memory Slot
Max. Supports up to 8GB Memory
Chipset
Intel Soc Chipset
Hard Disk
mSATA SSD 8G/16G/32G/64G/128G/256G/512G and 2.5" HDD 500G / 1TB Options
Supports mSATA SSD ( S01 case by default)
supports 2.5" HDD ( S02 case optional )
Onboard VGA
Intel HD Graphics
Onboard LAN
Realtek RTL8111E 10/100/1000 Controller
Audio Solution
Realtek ALC662 HD Audio

Front-Panel Connectors
• Power switch botton (Power LED)
• HDD LED
• 1 x USB 3.0 port
• 3 x USB 2.0 Ports
• 1 x Microphone Port
• 1 x Serial port

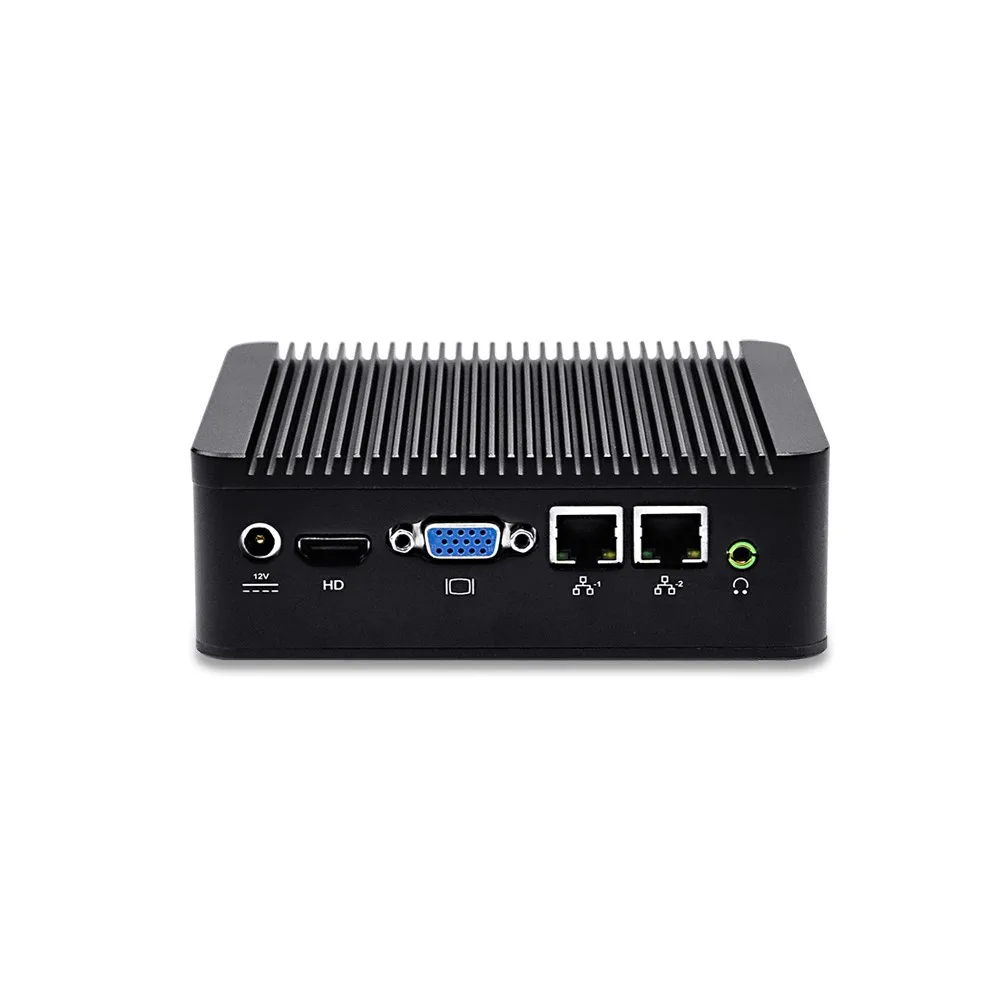

Back-Panel Connectors
• 1 × DC 12V input
• 2 × RJ-45 Ports
• 1 × HDMI Port
• 1 × VGA Port
• 1 × Speaker Port
Operating System
Support Windows 7 /Windows 8 / Windows 10 /Linux Ubuntu etc.
Detailed Images

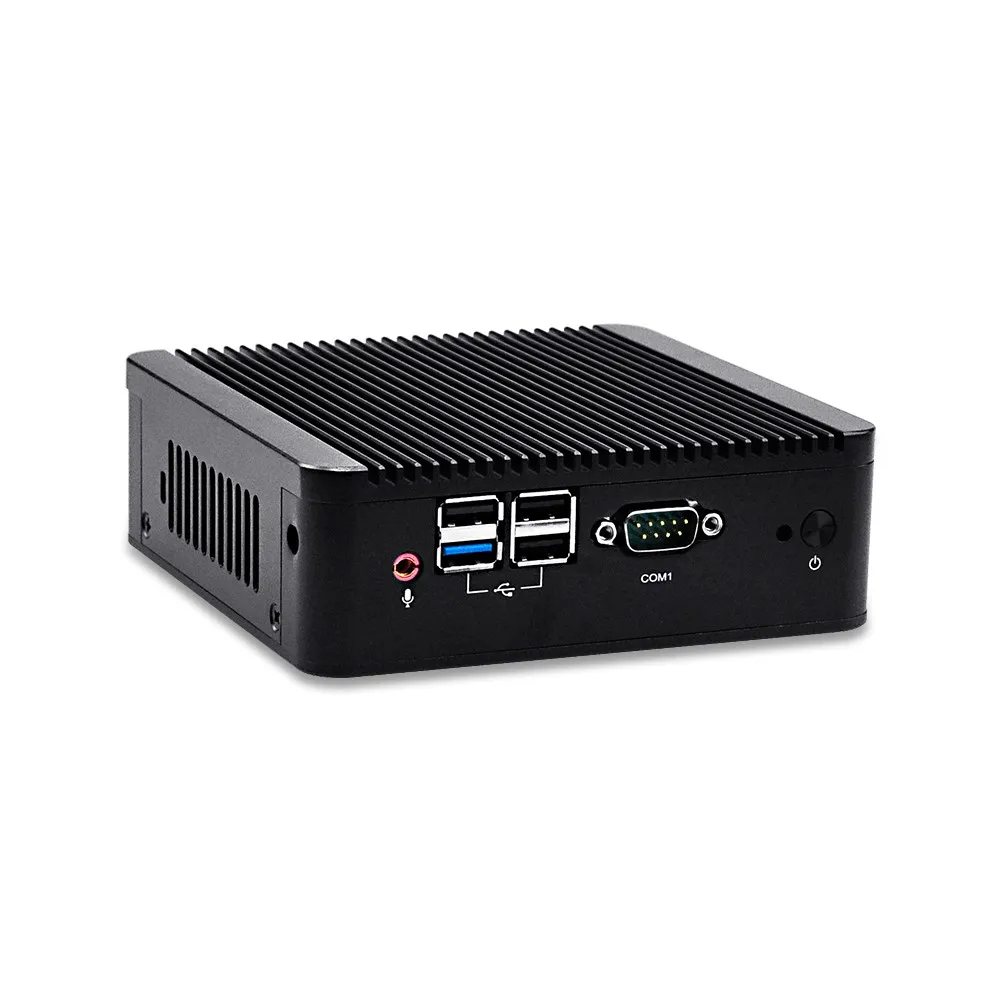

Fanless mini pc Q190S (S01)

Fanless micro Pc with S01 case in front side

support Msata ssd ONLY.

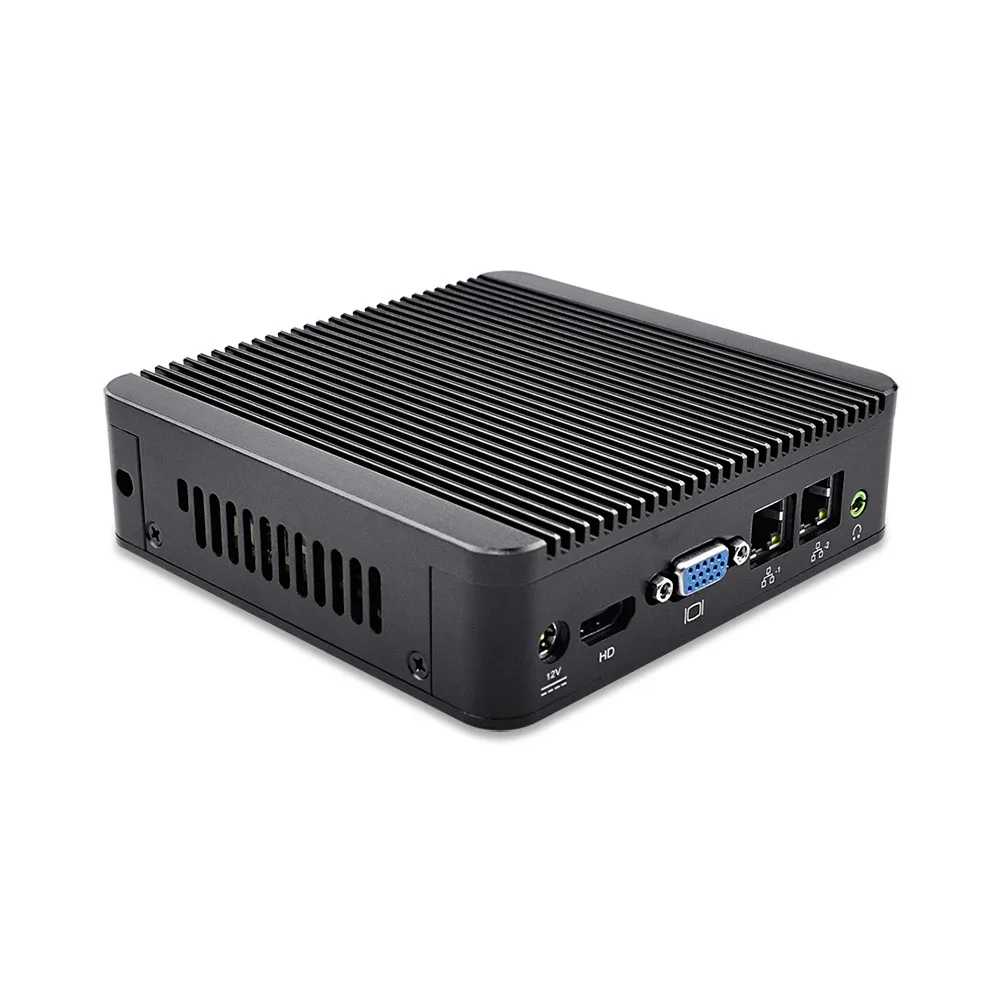

Fanless mini pc Q190S (S01)

Fanless micro Pc with S01 case in back side

support Msata ssd ONLY.

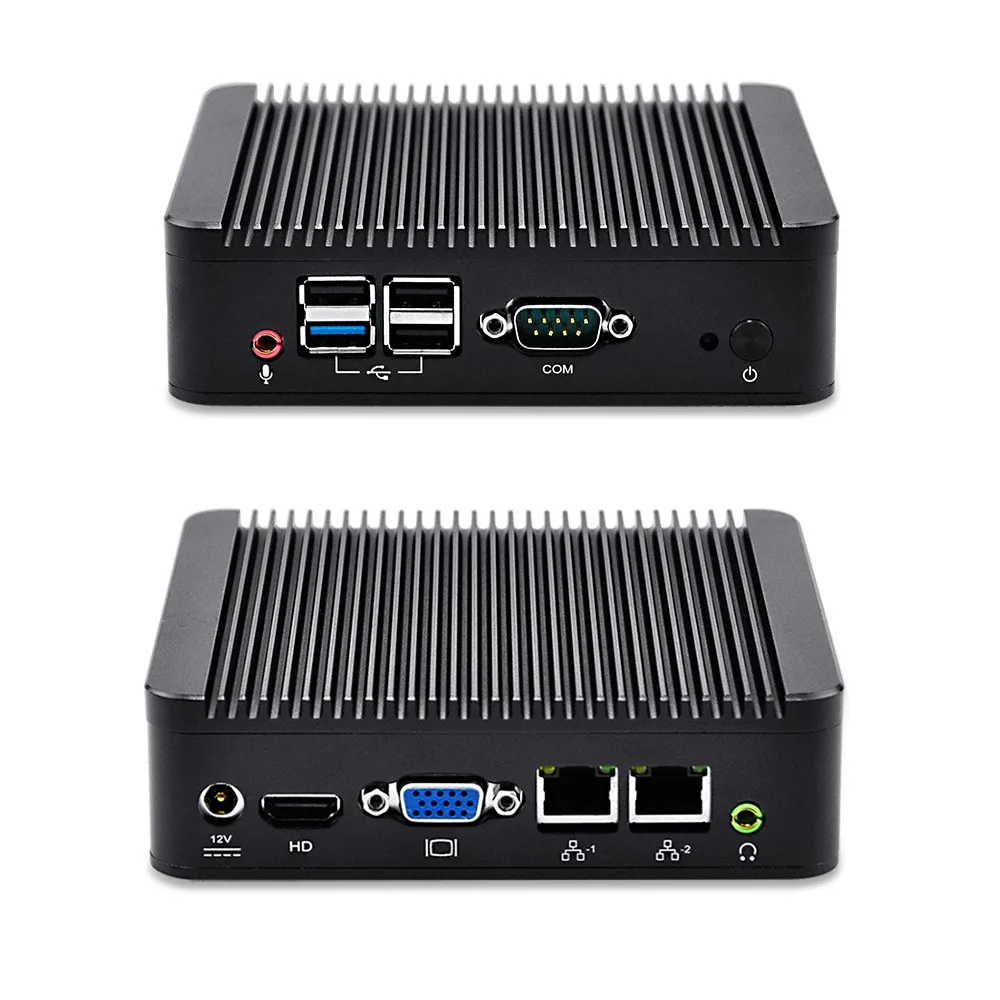

Fanless mini pc Q190S (S02)

Nice mini pc with S02 case in front side

support Msata ssd and 2.5 inch HDD

Fanless mini pc Q190S (S02)

Nice mini pc with S02 case in back side
support Msata ssd and 2.5 inch HDD




Tiny Pc with Standard VESA Bracket

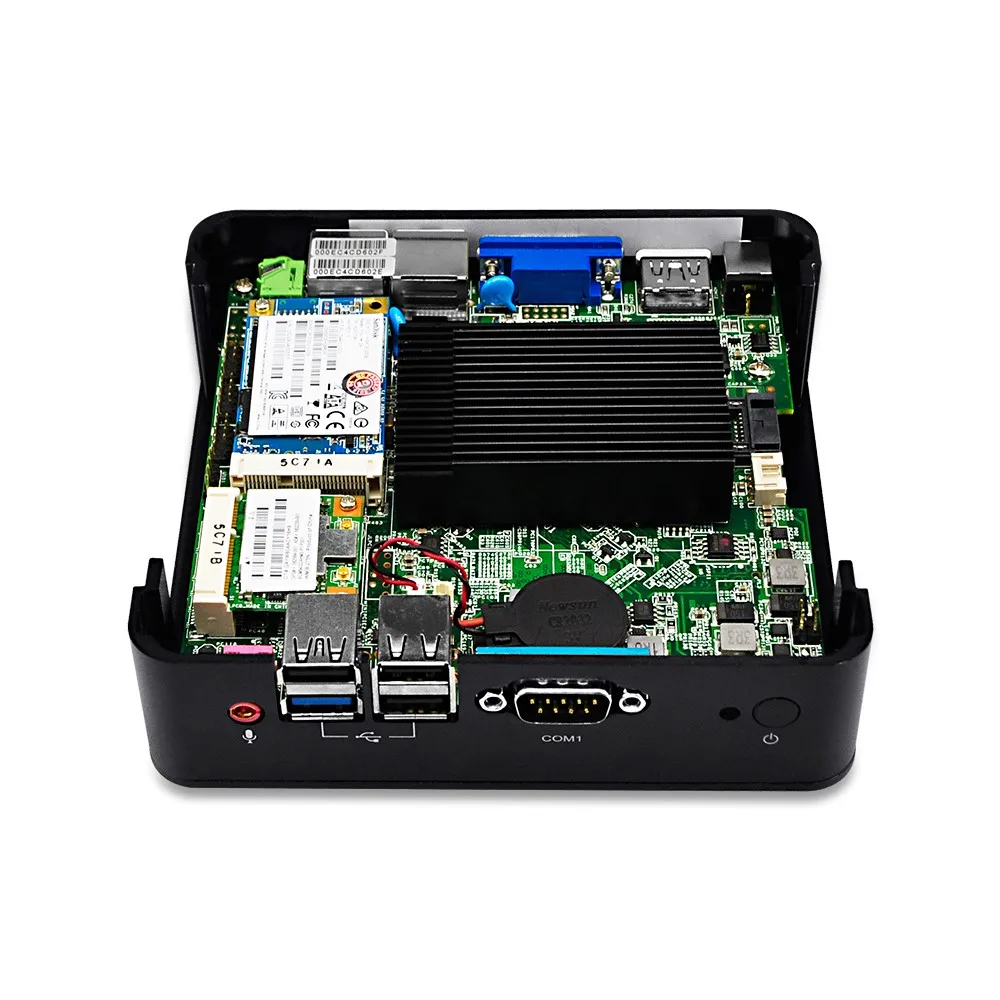

Inside of J1900 quad core mini pc


Packing & Delivery

Step 1

Step 2

Step 3

Packing


We use double brown paper packing box and EPE to protect the product. There is no logo, no words, no label on it.

Packing list:
1* Q190S mini pc
1* Power adaptor with cable
1* VESA bracket and screws

Shipment

We arrange the shipment timely within 2-3 business days after payment completed. DHL Express normally takes about 3 to 5 days to destination, door to door.


Fedex, EMS, HongKong air Post, UPS are options.

Related Products

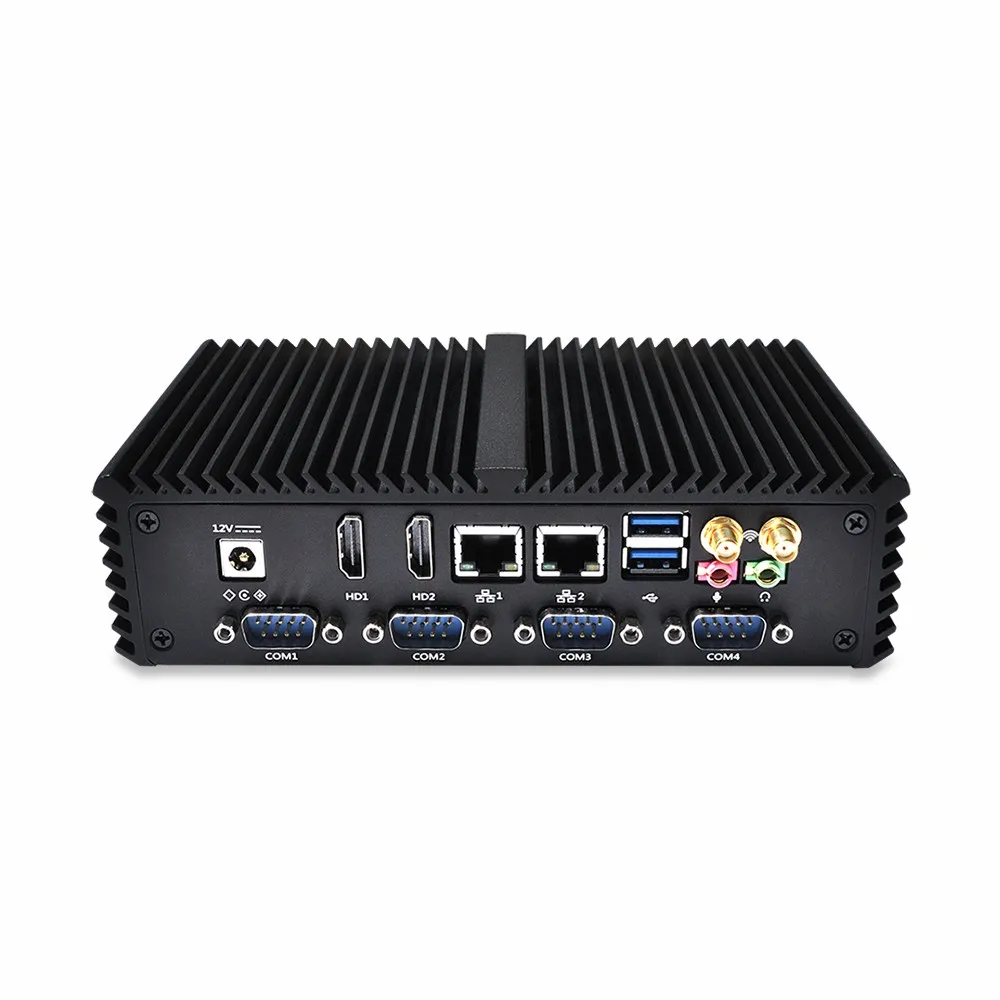

Fanless mini pc Q310P
CPU
Intel Celeron Processor 3215U (2M Cache, 1.70 GHz,Broadwell)
Power Consumption

TDP 15W
Memory
Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk
mSATA/ SATA SSD
2.5 INCH HDD
Pc Size
187*111*50mm
Fanless mini pc Q180S
CPU
Intel Celeron Processor J1800(Dual-Core 2.41 GHz)
Power Consumption

TDP 10W
Memory
Max. 8GB DDR3L 1333/1600 MHz,1.35V
Hard Disk
mSATA/ SATA SSD
2.5 INCH HDD
Pc Size
S01: 135×128×38mm
S02: 135×128×45mm
