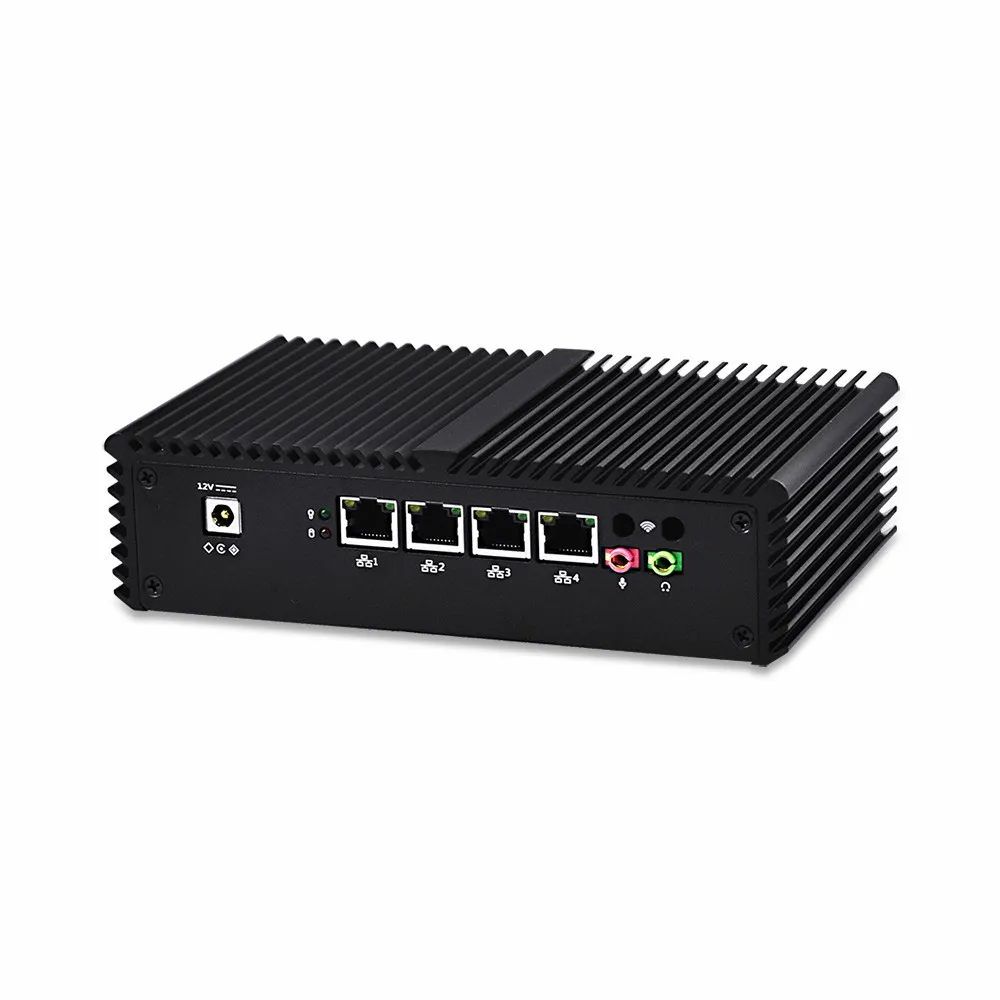

QOTOM 4 LAN Mini PC with Celeron/ Core i3/ i5/ i7 Processor and 4 Gigabit NIC, support AES-NI, Serial, Fanless Mini PC PFSense

FOB Reference Price:Get Latest Price
US $125-300 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Memory Capacity:
2G/ 4G/ 8G DDR3L SODIMM
Hard Drive Capacity:
mSATA SSD and SATA SSD/ HDD
Graphics Card Type:
Integrated Card
Processor Main Frequency:
1.7Ghz
Brand Name:
QOTOM
Model Number:
Q3XXG4
Place of Origin:
Guangdong, China (Mainland)
Packaging & Delivery
Packaging Details
Color packaging box, 1.8kg
Delivery Time
Within 2 working days
Product Description
Specification
Dimension
187*115*52mm(L*H*W)
Power Consumption
TDP 15W
Onboard CPU
Q310G4: Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Q330G4: 4th Generation Intel Core i3 Processor, 4005U by default, 3M Cache, dual core 1.7 GHz
Q350G4: 4th Generation Intel Core i5 Processor, 4200U by default, 3M Cache, dual core 1.6 GHz, up to 2.6 GHz
Q355G4: 5th Generation Intel Core i5 Processor, 5250U by default, 3M Cache, dual core 1.6 GHz, up to 2.7 GHz
Q370G4: 4th Generation Intel Core i7 Processor, 4500U by default, 4M Cache, dual core 1.8 GHz, up to 3.0 GHz
Q330G4/ Q350G4/ Q355G4/ Q370G4 support AES-NI
Memory
Support DDR3L 1333/1600 MHz, 1.35V
1 x DDR3 DIMM Memory Slot
Max. Support up to 8GB Memory
Hard Disk
Support SSD ( MSATA / SATA)
Support HDD (2.5 inch SATA HDD )
Onboard LAN
4 x Intel I211-AT- 10/100/1000 Controller
Audio Solution
Realtek ALC662 6-Channel HD Audio
Front-Panel Connectors
• power on/off button
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI Connector
• 1 × Serial port
Internal Connectors
• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/Bluetooth Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper
• 1 x SIM Card slot (optional)
Back-Panel Connectors
• 1 × DV 12V DC input
• HDD LED, Power LEDs
• 4 x Intel RJ-45 Ports
• 1 x Speak Out Connector
• 1 x Mic In Connector
Operating System
Support Windows, Linux, pfSense, etc

pfSense 2.5 and AES-NI

A news from Netgate is that pfSense version 2.5 will be based on FreeBSD 12 and need AES-NI. To get more information, please visit Netgate Web. Thanks for the community!

Operating System

4 LAN Mini PC Q3XXG4 support Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, ect. But it will come with the latest pfSense (Username: admin; Password: pfsense). You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter BIOS.

4 Intel LAN Ports

The 4 ports are labeled WAN, LAN, OPT1 and OPT2. For anyone using this for pfSense, please note that these labels are misleading. Instead of the ports as 1, 2, 3 ,4, they are 1, 3 4, 2. So if you are using only WAN and LAN for pfSense, use the first port for WAN and last for LAN.

Quotation

Price (USD)

Price (USD)
2GB RAM
$19
16G MSATA SSD
$14
4GB RAM
$32
32G MSATA SSD
$19
8GB RAM
$64
64G MSATA SSD
$33


128G MSATA SSD
$53
Wi-Fi (AR9287)
$5
256G MSATA SSD
$87
Wi-Fi +Bluetooth
$9
500GB 2.5 SATA HDD
$39
1TB 2.5" SATA HDD
$47
Barebone Q310G4
$125
Barebone Q330G4
$176
Barebone Q355G4
$216
Barebone Q350G4
$201
Barebone Q370G4
$257
Notice
1
Barebone: it means that NO RAM & NO SSD & NO Wi-Fi & NO Bluetooth
2
Please choose memory/ hard disk/ Wi-Fi to calculate the total price by yourself.
3
Above quotations are only for reference. We adjust product cost and fixed exchange rate monthly.
4
Above quotations exclude any other fees. The price on AliExpress qotom official store and Amazon qotom store are higher because of the Escrow fees.
5
If you want to place an order online or offline, please contact us.
Detailed Images

There is a mini pcie solt for wifi and 4G module but support wifi default. If you are interested in 4G function, please contact us in advance.


Packing & Delivery

Packing

We have 2 kinds of packaging box, color box and neutral packaging box.
No brand, No logo, No sticker.

Shipment

We arrange the shipment timely within 2 business days after payment completed. DHL Express takes about 3 to 5 days to destination.
Fedex, EMS, HongKong air Post, UPS are options.

Packing list

1 x Mini PC
1 x Power supply: 12V 5A adapter and plug (US/ UK/ EU/ AU/ IT standard)
1 x VESA bracket
1 x SATA power cable for 2.5" SATA SSD/ HDD (For S02)
2 x Antennas (If you choose Wi-Fi)
Some screws for VESA and SATA
1 x salesperson business card (You can contact the salesperson by email if necessary)

Attention please

Import fees:

We are not responsible for your import fees (duty and tax, VAT and others), but we can do our best to help you avoid or reduce them. Declaring a lower price is the best solution.
If you need us declare true value or lower value, please leave a message.
Please focus on the shipment, you can contact DHL/Fedex when the package reach to the Customs that may save some fees.
We are not responsible for the delays due to the Customs clearance in your country.

FAQ:

Q: What's your MOQ?
A: MOQ: 1 piece.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: What's the payment term?
A: We accept T/T, western union and Paypal. If you prefer to place orders online, we can provide QOTOM AliExpress Store link or Amazon store link.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.

Q: What is the warranty?
A: One year warranty.
