Quick Details

  • Products Status: Stock
  • Application: Desktop
  • Chipset Manufacturer: Intel
  • Form Factor: Mini-ITX
  • Memory Type: DDR3
  • Graphics Card Type: Integrated
  • Hard Drive Interface: SATA
  • Brand Name: QOTOM
  • Model Number: Q3215P
  • Place of Origin: Guangdong, China (Mainland)
  • CPU: CPU: Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
  • Size: 148mm x 104mm
  • Mechanical standard: 3.5" Industrial Motherboard

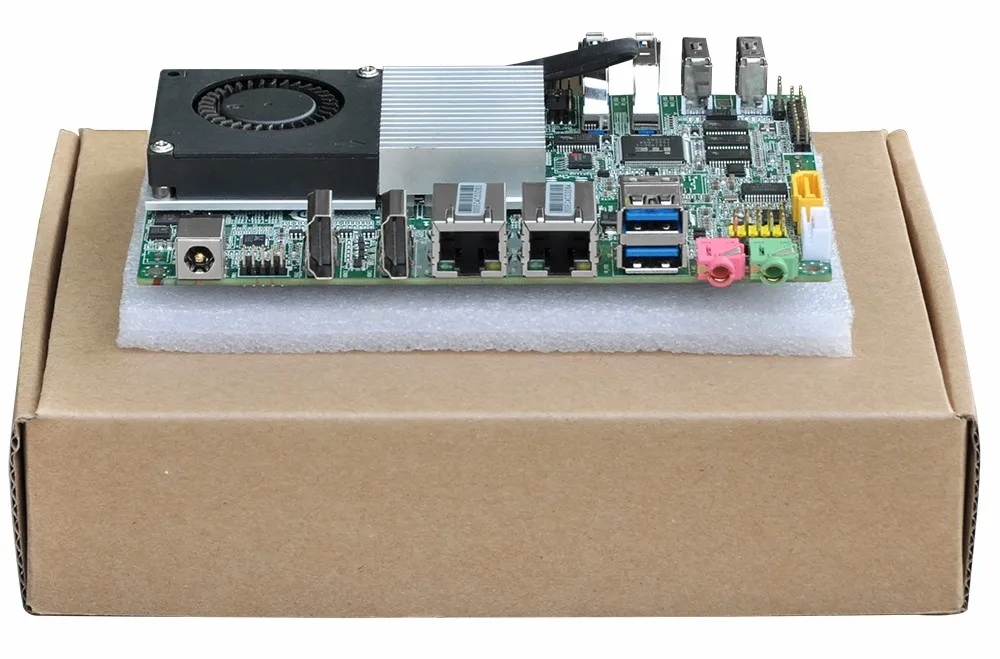

Packaging & Delivery

Packaging Details: Industrial package
Delivery Detail: Shipped in 3 days after payment
Q3215UG2-P

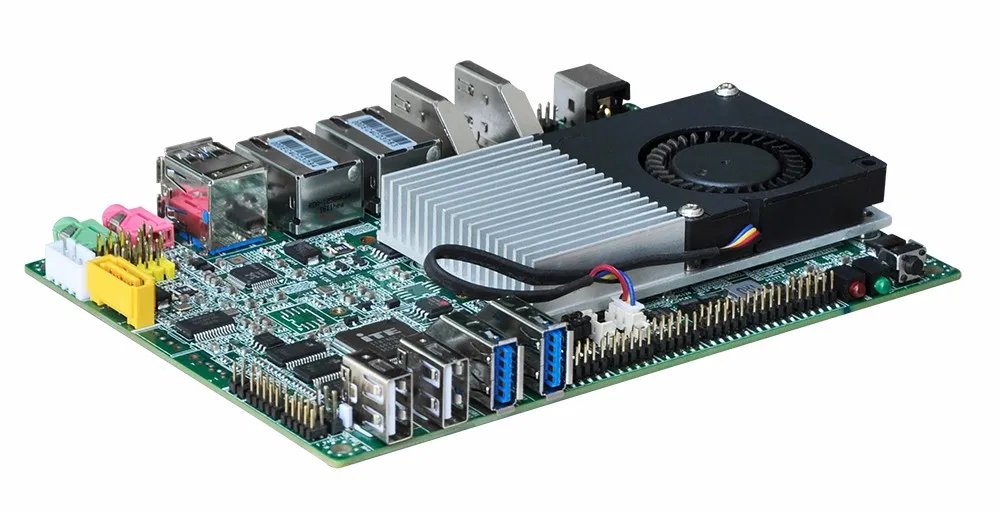

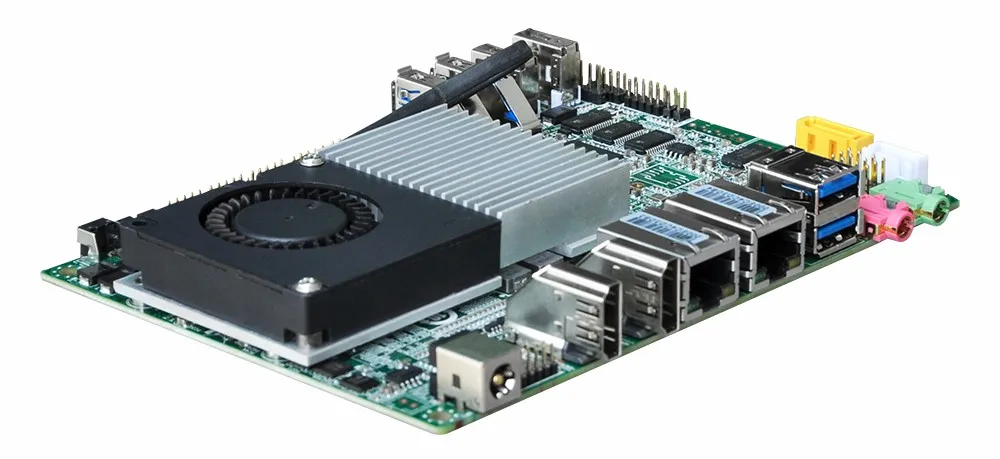

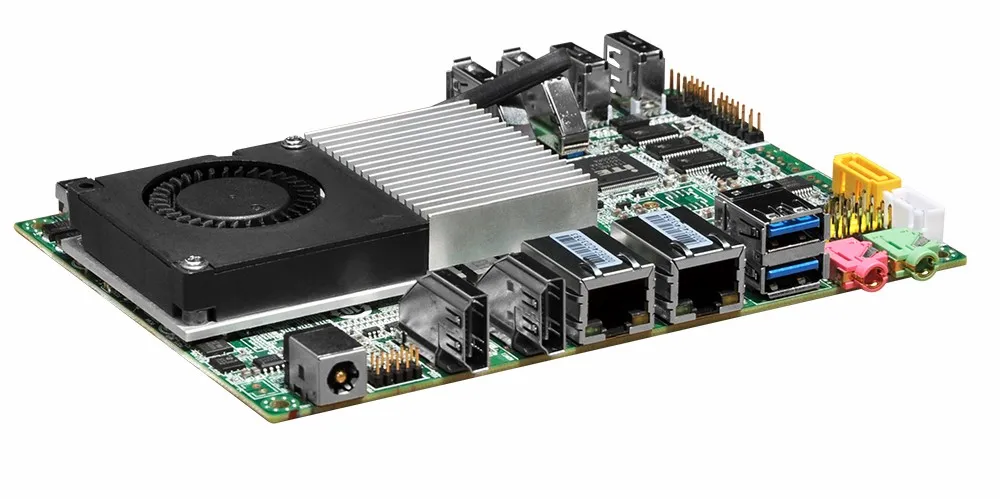

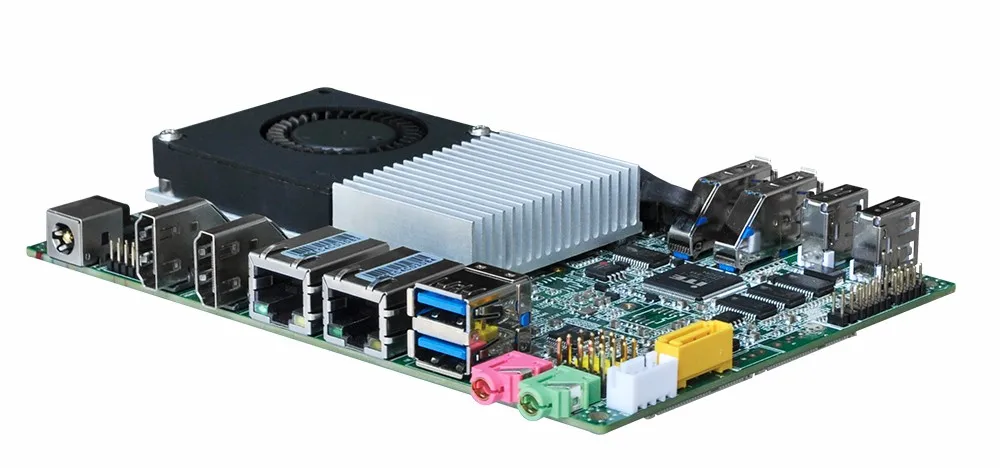

Q3215UG2-P 3215U Dual core 1.7G mini itx ITX Motherboard

1

Mechanical standard
3.5" Industrial Motherboard
148mm x 104mm

2

Processor
Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
With up to 15 W TDP

3

BIOS
AMI BIOS
64MBit BIOS


4


Memory
One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V
Support 8GB Max

5


Graphics
Intel HD Graphics
Display: VGA / HD Video Three Display
* 2 x HD Video (port), 1 x VGA (header)
6
Lan
2x Intel I211-AT 1000M


7


Audio
Realtek ALC662 HD Audio Decoding controller
6 Channel Audio output
Line out + MIC IN Port
8
COM
6 x COM port

9

USB
2 x On-board USB 2.0
4 x On-board USB 3.0
2 x Pin interface USB 2.0

10

Storage
1 x SATA 3.0 (6Gb/s)
1 x Mini PCIE port








11








Expansion Port
1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD )
1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth )
1 x SIM port (optional)
1 x SATA power connector
1 x SATA 3.0 connector (6Gb/s)
1 x DDR3 SO-DIMM socket
1 x Front panel header
1 x Serial port header
1 x GPIO header
1 x Automatically boot jumper
2 x USB 2.0 header
1 x Audio header



12

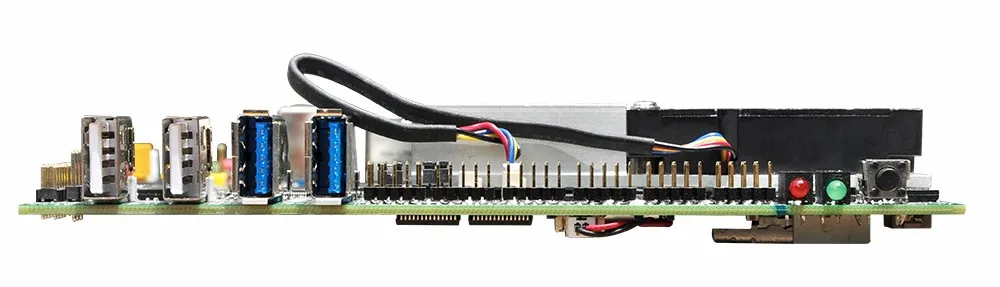

Front Panel
1 x Push button for Power ON/OFF
1 x Power LED
1 x HDD LED
2 x USB 3.0 ports
2 x USB 2.0 ports




13

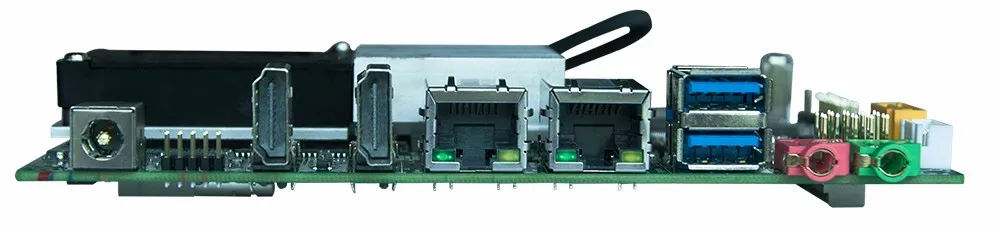

Black Panel
1 x DC in connector
2 x HDMI Connectors
2 x RJ45 1000M ports
2 x USB 3.0 Ports
1 x Mic in port
1 x Speaker out port
14
Power Supply
DC 12V

15

Working condition
Operation Temperature -10º-50ºC
Operation Humidity 10%-90% Relative Humidity,
Non-Condensing
16
Accessories
Cable for SATA HDD

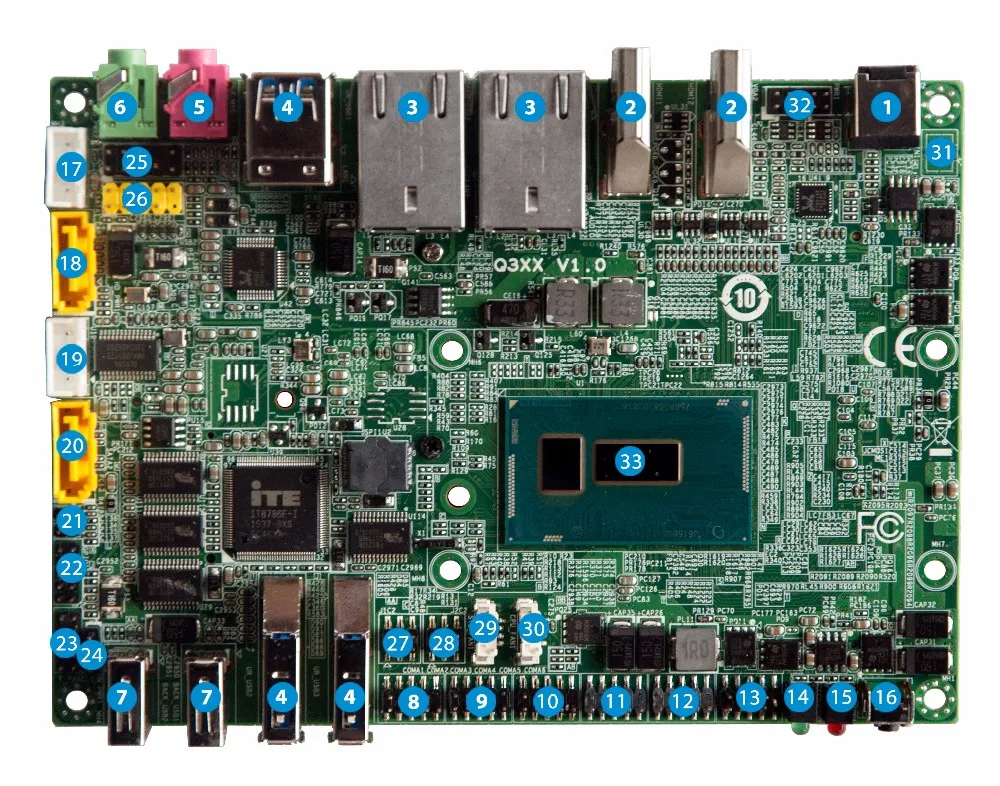

1
12V DC in connector
2
HDMI connector
3
Lan connector
4
4 * USB 3.0 ports
5
MIC: Connect to outside microphone
6
(Line out): Connect to outside audio device
7
2 * USB 2.0 ports
8
Serial port expansion header (COM1)
9
Serial port expansion header (COM2) (RS485 optional)
10
Serial port expansion header (COM3)
11
Serial port expansion header (COM4)
12
Serial port expansion header (COM5)
13
Serial port expansion header (COM6)
14
HDD led
15
Power led
16
Power button
17
SATA1 power connector
18
SATA1 port
19
SATA2 power connector (optional,only for Core Processor)
20
SATA2 port (optional,only for Core Processor)
21
CMOS clean header
22
GPIO header
23
Front panel header
24
Automatically boot jumper
25
Front panel audio header
26
Front panel USB 2.0 header
27
RS232/RS485 Function switch jumper
28
RS232/RS485 Function switch jumper
29
System fan header
30
CPU fan header
31
DC in header (optional)
32
VGA extension header
33
Processor (Support HASWELL and BROADWELL )

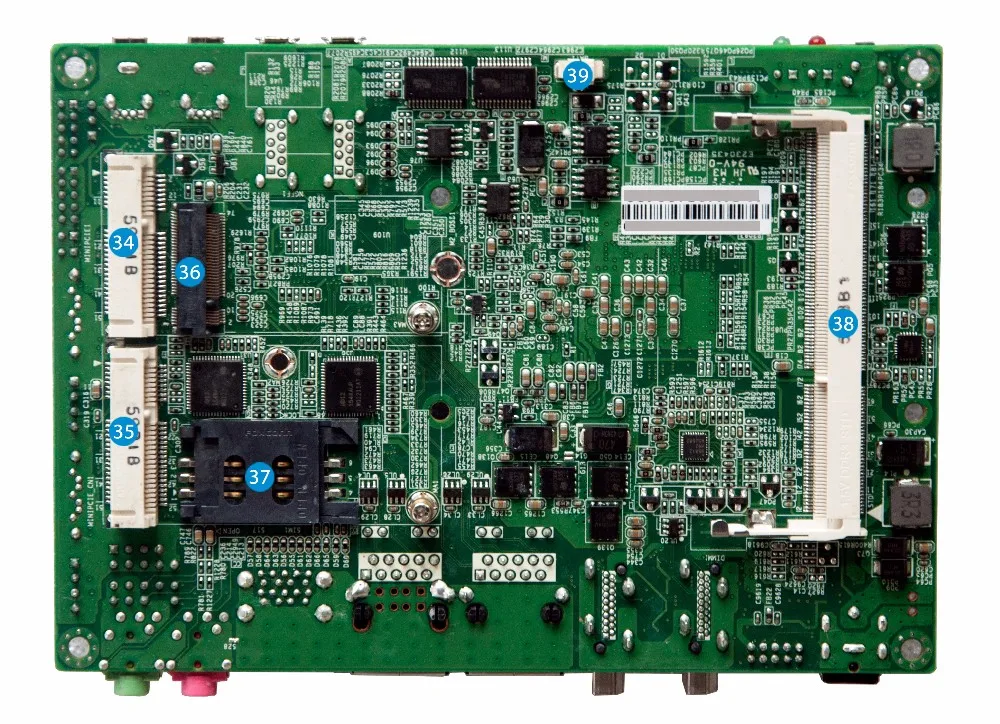

34
Mini PCI Express connector for MSATA SSD
35
Mini PCI Express connector for WIFI,Bluetooth,3G module
36
M.2 SSD Socket (optional,only for Core Processor)
37
SIM card socket
38
DDR3L SO-DIMM socket
39
Battery connector
Detailed Image
