Quick Details

  • Products Status: Stock
  • Type: Desktop
  • Screen Size: No Monitor
  • Processor Brand: Intel
  • Memory Capacity: 8G RAM
  • Hard Drive Capacity: 256G SSD
  • Graphics Card Type: Integrated Card
  • Processor Main Frequency: Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
  • Brand Name: QOTOM
  • Model Number: QOTOM-Q310PP
  • Place of Origin: Guangdong, China (Mainland)
  • Industry: Mini pc 12V
  • Color: Black
  • CPU: Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
  • Operating System: Support Windows 7/8/10/Linux etc

Packaging & Delivery

Packaging Details Industrial package
Delivery Time Shipped in 3 days after payment
Product Description
Power Supply
DC 12V
Working Temperature
-10℃-55℃
Humidity
0% - 95% Non-Condensing
Weight
2KG
Dimension
187*115*52mm(L*H*W)
Watch Dog Timer
Support

This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security

Qotom-Q310P Fanless X86 3215U 1.7G Dual core 4 LAN Mini PC
Dimension
187*115*52mm(LHW) ( Reference )
Weight
2Kg ( Reference )
Power Consumption
TDP 15W
Onboard CPU
Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory
Support DDR3L 13331600 MHz,1.35V
1 x DDR3 DIMM Memory Slot,Max. Support up to 8GB Memory
Hard Disk
support SSD ( MSATA SATA)/support HDD (2.5 inch SATA HDD )
Onboard VGA
Intel HD Graphics
Onboard LAN
2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution
Realtek ALC662 6-Channel HD Audio


Front-Panel Connectors
• power on/off button
• HDD LED, Power LEDs
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 2 × COM ports




Internal-Connectors

• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/BLUETOOT Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper
• 1 x VGA header
• 1 x GPIO header (optional)
• 1 x SIM Card slot (optional)



Back-Panel Connectors
• 1 ×DV 12V DC input
• 2 x HDMI Connectors
• 2 x Intel RJ-45 Ports
• 2 x USB 3.0 Ports
• 1 x Speak Out Connector
• 1 x Mic In Connector
• 4 × COM ports
( COM 2 can be RS485,COM3 can be VGA Ports)
Operating System
Support Windows 7 Windows 8 Windows 10 Linux etc
Default OS
We pre-install Unactivated Windows 7 for testing and we do not provide any Windows license.
There are 4 options for this model,You could choose what you want!We usually send Option 1 By default.
Optiona 1
6 RS232+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0(2 display)
Optiona 2
5 RS232+1 RS485+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0(2 display)
Optiona 3
5 RS232+1 VGA+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0.( 3 Display)
Optiona 4
4 RS232+1 VGA+1 RS485+2 HD Video+ 2 Intel RJ45 Port+4 USB 3.0+ 2 USB 2.0(3 display)
Notice:COM2 can be RS485 and COM3 can be VGA Ports.

Q3215UG2-P

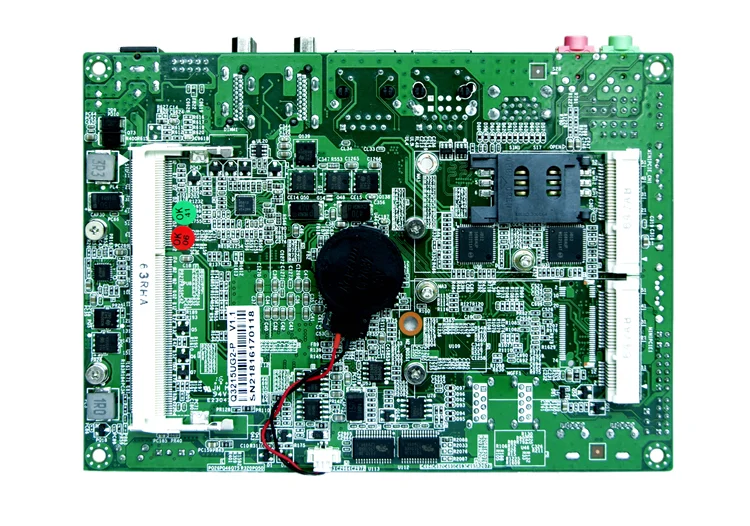

Q310P motherboard inside-Front-side

        Q3215UG2-P

          Q310P motherboard inside-Back-side

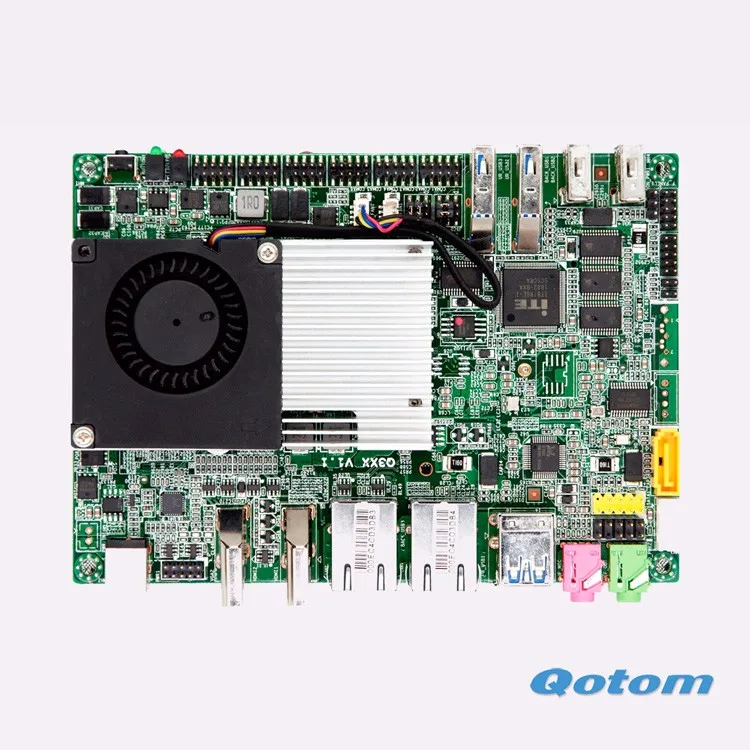

Q310P is fanless mini pc by default,the customer who wants to buy motherboard only,it's cooling fan embedded
Q310P
You can choose what configuration you want
CPU
Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory
2G/4G/8G DDR3L SO-DIMM
Hard Disk
8G/16G/32G/64G/128G/256G
500G/1T HDD 2.5"
WIFI
Optional
WIFI & BT
Optional

Mini pc can meet the below requirements

1.Put it under the television in the living room,It can play Network movie After connecting TV,Searching Internet and viewing photos,It also can download movies (Higher capacity hard disk optional)

2.Business office preferred,Such as E-shop,Online office use,Environmental protection and energy saving,Saves the electricity,The power consumption is more than 17W,Company production of enterprise office,Save a space.

3.Hotel rooms dedicated computer,Elegant appearance,High grade,it’s very convenient in the hotel,Solid state design,Unzerbrechlich, nonoise,Low power consumption,Energy-saving power.

4.Dedicated computer education and training industry that’s better performance than a PC,More convenient software compatibility and more colorful,Faster speed,it’s more suitable for students in computer education industry.

5.Industrial computer designed for industrial users reserve and serial port,The design of the machine,Can be fully competent for industrial applications,All solid state design,Completely mute design,Overall plate type design is balancing the needs of the industrial users.

6.Call center users,E-commerce office,Estate agents,All kinds of public window,Cloud services desktop virtualization platform connected to the computer terminal equipment,Task-oriented office workstations.

7.Other special computer:It can also be used as a remote media player,Advertising machine,All-in-one mini pc,POS machine Equipment of the main parts ect,Use of the secondary development into other products.ok.

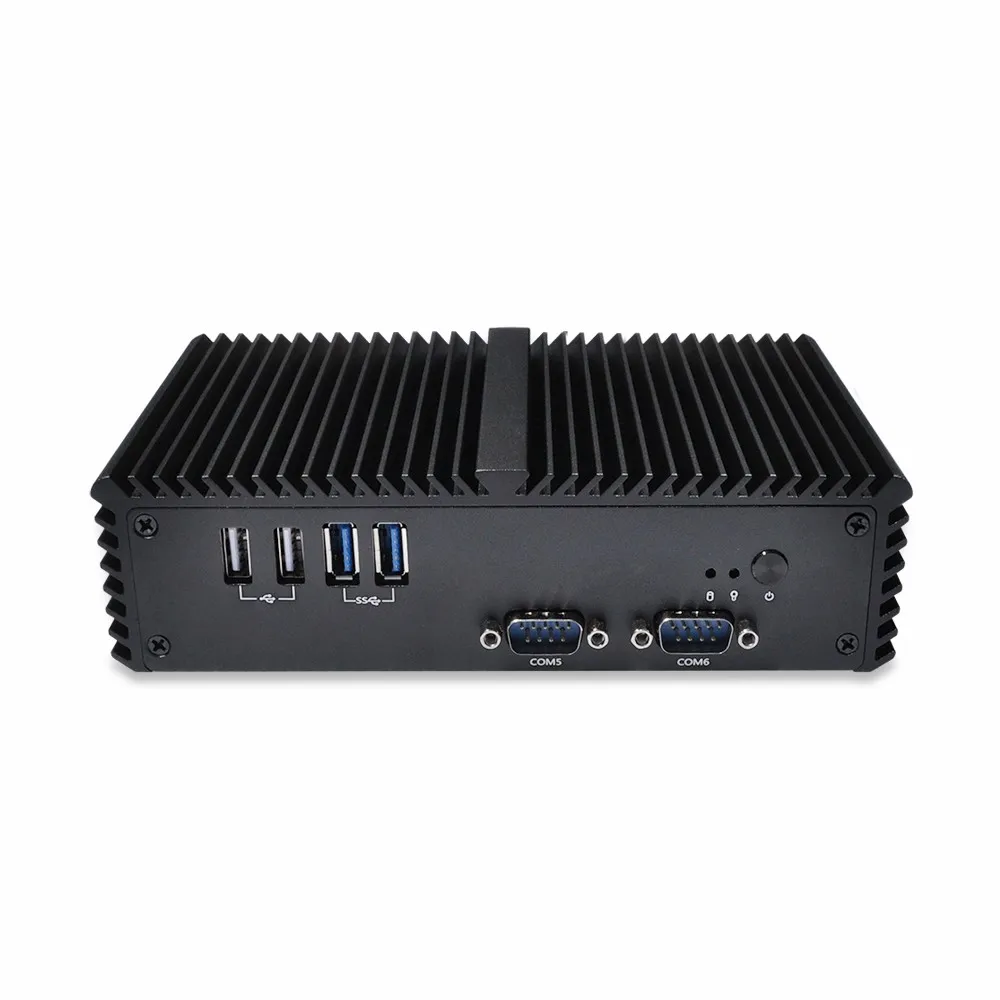

Front-Panel Connectors
• HDD LED, Power LEDs


• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 2 × COM ports
Back-Panel Connectors
•1 ×DV 12V DC input
• 2 x HD Video  Connectors
• 2 x Intel RJ-45 Ports
• 1 x Speak Out Connector

• 1 x Mic In Connector

• 4 × COM ports ( COM 2 can be RS485,COM3 can be VGA Ports)
Internal Connectors
• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFIBLUETOOT Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper
• 1 x GPIO header (optional)
• 1 x SIM Card slot (optional)
Detailed Image
Related Products
Our Company

Brief Introduction:

Our company is a professional manufacturer of motherboard and mini pc which located in the city of ShenZhen,China,we are offering many kinds of nano motherboard and mini pc since 2011,we opened a big market in all over the world.We got our Qotom agent in Canada,spain,Brazil,USA etc. You can find our Qotom products easily in Asia, the Middle East, Latin America and Africa and other countries and regions.

Our business aim is to let more and more people come to know and use our products. Our Mini computers are cheaper and smaller than traditional desktops,you just need to prepare one mouse,one keyboard and internet,then you could search internet freely,it can help you save more than 70% computing cost,they are most popular in office,factory,school,public,pos machine,government,hospital etc.

Our warranty is one year,if there is a problem with our products, you could ship it to us, you could bear the shpping cost and we bear the shipping cost when we return it to you, if the customer who cooprate with us for long time ,the warranty can be extended.

Thanks for your support, enjoy your shopping!

Packing & Delivery

Packing

1*mini pc,1*power adapter( Chinese standard / European standard / British standard /Australian standard / American standard )1*Vesa,1*Screw,1*package box

1 PCS 1.5KG including package 27*23*9CM

Delivery

1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.

Our Orders


Warranty

1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.

FAQ

Q1: What's your MOQ?
A1: The MOQ is 1 pieces for bulk order!

Q2: Can I get a sample for testing?
A2: Yes, of course, we are honored to offer you sample for testing, and you will pay the shipping cost, as well the sample cost!

Q3: How’s your package for mini computer?
A3: All individual packed in package;10 pieces mini computer in a carton

Q4: What's the delivery time?
A4: Generally speaking, 1-2 days for sample and 5-12 days for bulk order!

Q5: Can you arrange the shipment? Since it's my first time to buy from China.
A5: Yes, we can arrange a trustworthy shipping company with reasonable price for you!

Q6: What mode of transport you can choose?
A6: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.

Q7: What's the payment term?
A7: We accept T/T, western union, Paypal, For bulk order by T/T and Western Union, 30% deposit in advance and 70% balance before delivery. For OEM order, require of 50% deposit.

Q8: What’s the warranty of mini computer?
A8: Non-artificial damage, 3 Month replacement, 1 years warranty.if the customer cooperate with us for long time,the warranty time can be longer.

Q9: Can I print my logo on the mini computer?
A9: Yes, we can print your logo on the mini computer,MOQ: 10 PCS

Q10: Can you provide DIY/OEM/ODM service?
A10: Yes, please advise the CPU, memory, hard drive of SSD or HDD, WIFI, interface ports and OS freely as you required, price will be different depends on the quantity and specification.

Q11: How does your factory do related quality control?
A11: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.

Q12: What operating system can I use on the Mini PC?
A12: Qotom mini pc support all kinds of main operating systems, most buyers are using Windows and Linux. We pre-install Unactivated Windows 7 for testing and we do not provide any Windows license.

Q13: Can you expand the ram?
A13: Yes , of course .

Q14: Does your mini computer support 4K?
A14: Yes, our mini computer with i3/i5/i7 processor support 4K.

Q15: Will it be very hot since the mini computer CPU is fan-less?
A15: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.

Q16: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A16: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.

Q17: Which kind of power supply do you provide with?
A17: There are EU, UK, US, AU, four standards of power supplies are available,
We will deliver the right power supply to you according to the standard of power plug you use in your country.

Q18: Possible using 220v AC power?
A18: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q19: Are you a factory or trading company?
A19: We are the professional consumer electronics manufacturer which located in SHENZHEN, China

Q20: If we come to China, can you arrange the visiting to your factory?
A20: We warmly welcome and look forward to your visiting to our factory at any time.
